Zaxcom RX-12R
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
The RX-12R is a completely re-imagined rack mountable receiver ideal for sound challenges in studio and network applications. Its ergonomic design takes up only one-and-a-half rack spaces in height. As a wide-band receiver, its full tuning range is 512-698 MHz and features a 35 MHz tracking front end filter to eliminate interference from unwanted radio frequency (RF).
The RX-12R provides RF amplification and both antenna and power distribution for up to 6x MRX214 dual receiver modules or 6x MRX414 quad receivers modules inside the RX-12R. All MRX receiver modules are hot swappable and can be added or removed at any time, making the RX-12R ideal for rental companies where receiver requirements can change on a daily basis.
FEATURES:
- fully digital: the RX-12R receives a 100% digital signal that is fully encrypted resulting in audio quality far superior to any analog system. Additionally, it's compatible with all Zaxcom modulations and transmitters
- easy control: a bright, full color LCD displays the menu while a built-in frequency scanner and Auto-Pick software eliminates the guess work and can coordinate and choose the best frequencies with a push of a button

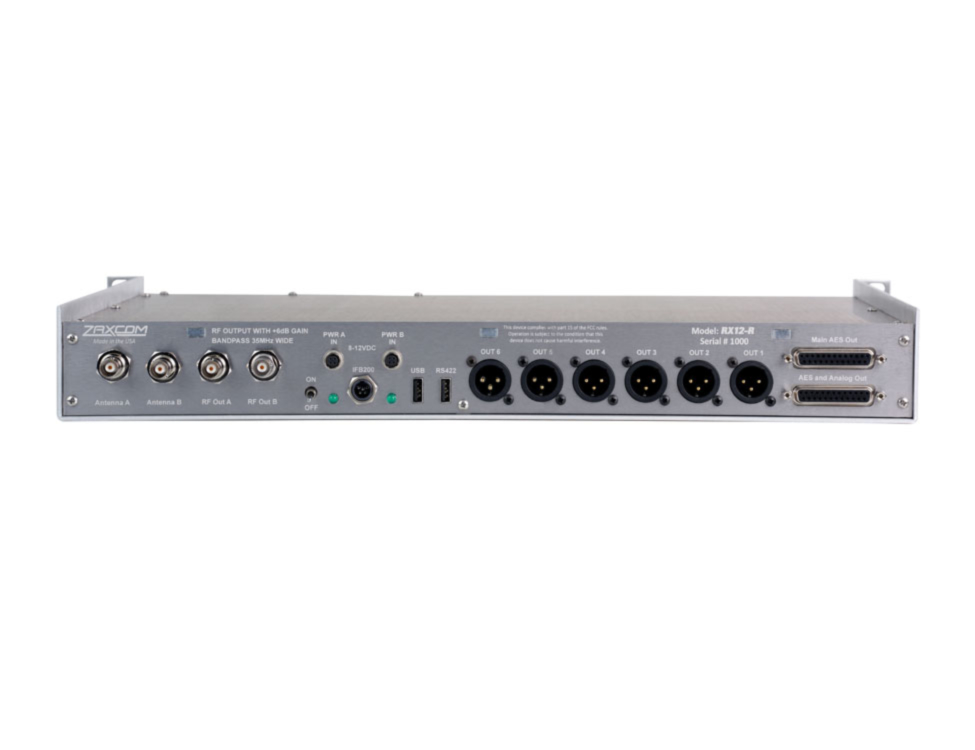

- connectivity: 6 XLR analog outputs and two DB25 connectors configure 12 analog or 12 digital signals. An antenna in and RF loop through provide support to daisy chain up to three RX-12R receivers to one set of antennas. You can monitor the internal audio via headphones and auto-switching 12V redundant DC input supplies power
- advanced features: when paired with a Zaxcom recorder, the RX-12R can re-frequency transmitters to match the RX-12R with a touch of a button via ZaxNet.
OUTPUT:
- analog audio output: balanced 0dB @ -20 dBFS (2-channel receiver)
- analog audio output connectors: 6 x male XLR outputs
- digital audio output connectors: 2 x DB25
- headphone output: 1 x 3.5 mm
DIGITAL I/O:
- connectors: 1 x USB / 1 x RS422
RECEIVER:
- RF input connectors: 2 BNC
- RF output connectors: 2 BNC
- RF impedance: 50 Ohm
- RF gain input / output: 0 dB
- RF amp noise figure: 0.5 dB
- RF amp IP3: +30 dB input
- RF filter band pass: 35 MHz
- RF tuning range: 512-698 MHz
MRX214 MODULE:
- receivers per module: 2
- receiver modulation: Zaxcom Proprietary Digital
- tuning range: 512-614, 550-660, 596-698 MHz, module dependent
- power consumption: 160 mA @ 13 VDC
MRX414 MODULE
- receivers per module: 4
- receiver modulation: Zaxcom Proprietary Digital
- tuning range: 512-614, 550-660, 596-698 MHz, module dependent
- power consumption: 300mA @ 13VDC
MISCELLANEOUS:
- IFB200 interface: Switchcraft TA5-M
- power: 8 VDC to 18 VDC (2 amps w/6 x MRX214 modules)
- power type: Dual input auto switching
- power connectors: 2 x Hirose HR10A-7P-4P
- LCD Screen: TFT daylight readable color
- LCD Size: 2.2 diagonal
- weight: 3.45 Kg (loaded with 6 x MRX214 receiver modules)
