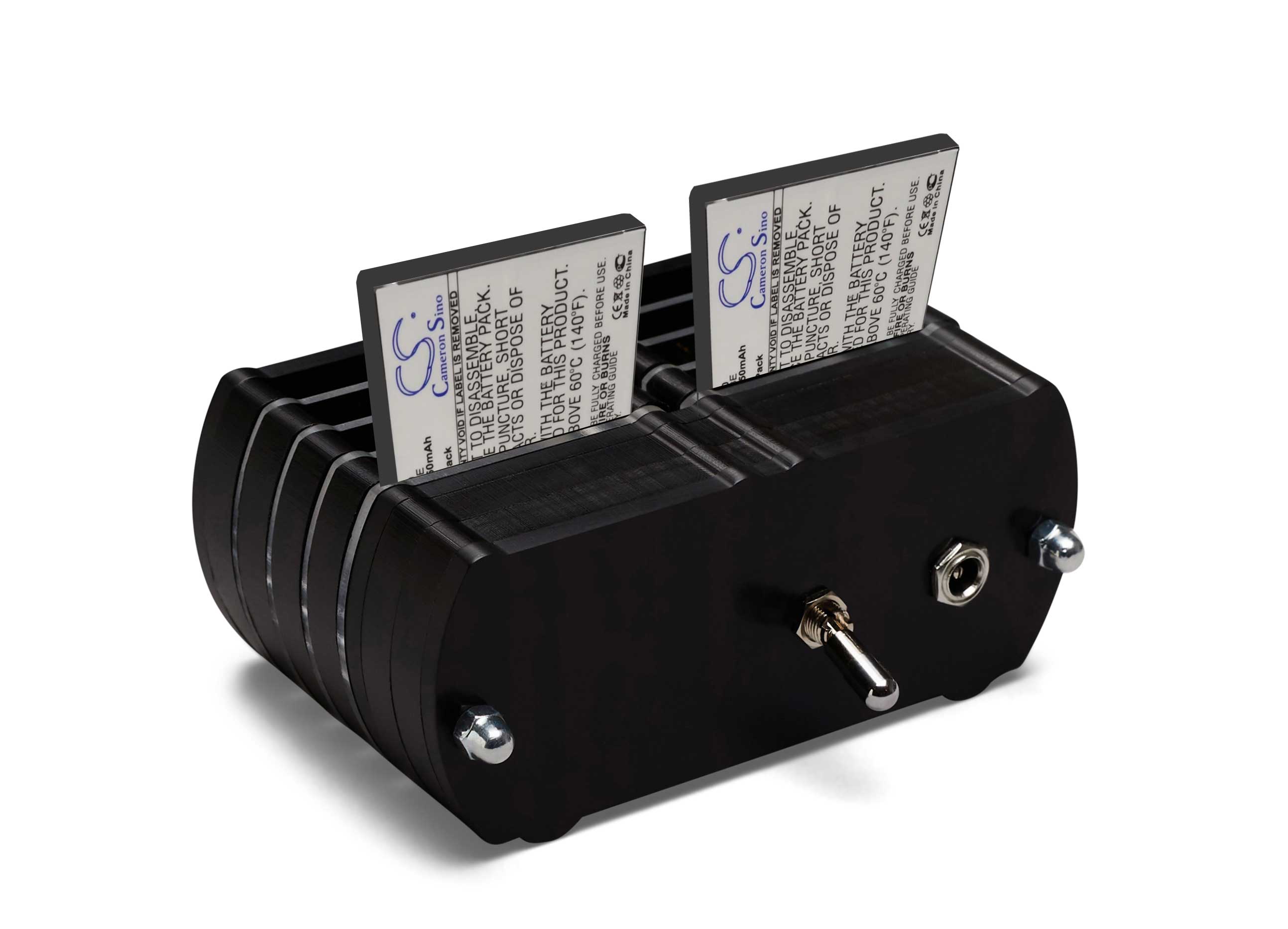

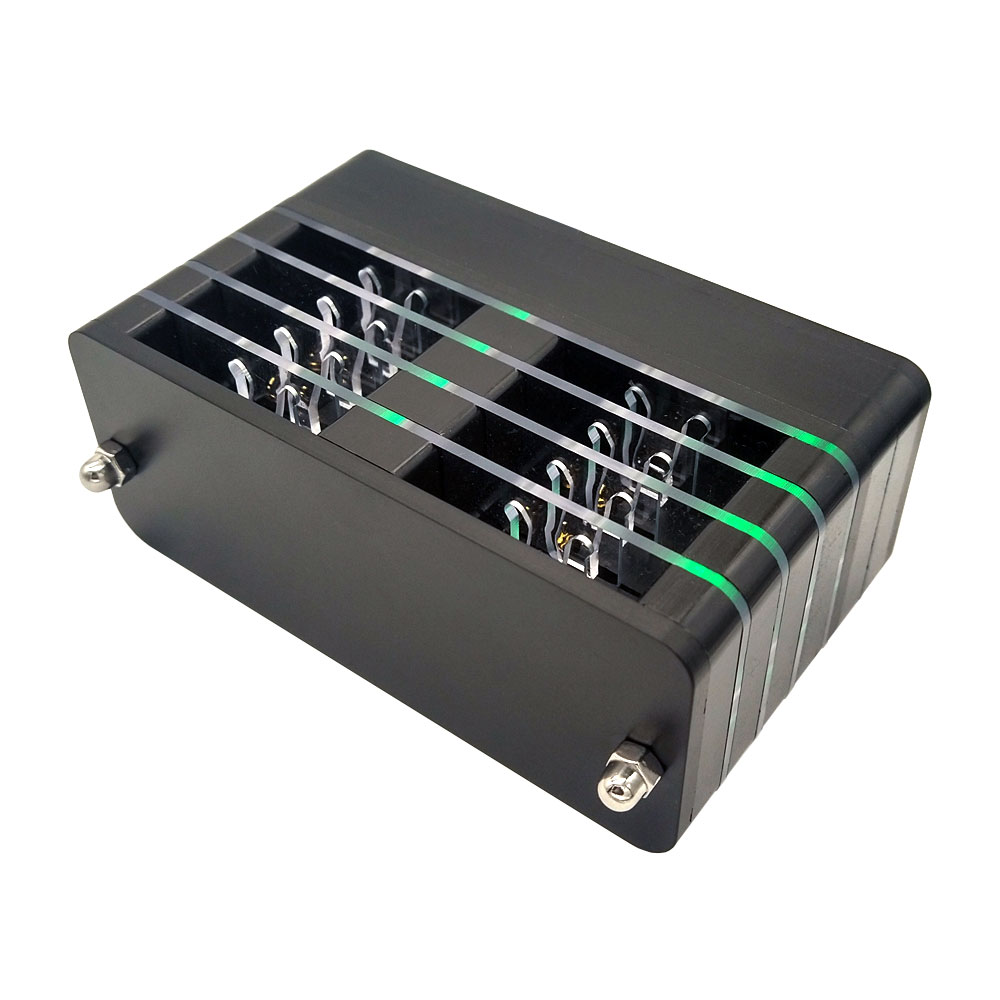

Wrinex WX LB61 Charger

8-bay CS-BCE10 battery charger. Batteries to be used in Wisycom MTP61.
€375.00
  • Ordered before 15:00, shipped the same day, provided products are in stock.
  • Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
  • Tax free for customers outside the Netherlands (with a valid VAT number).
  • Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number: K038583

A Hand made charger for your LB61 batteries, it has the smallest form factor of all LB61 chargers currently on the market. (HxWxL) 5 x 12 x 9 cm.
You can easily take it with you on smaller projects and will function all around the world with an appropriate power plug. (Charger does not come with a IEC plug because of this)

  • Charges 8 LB61’s Simultaneous.
  • Matched Charging chips within 1% accuracy. (all pcb’s are tested manually). 4.16-4.24 volt with a bias towards the lower end to achieve longer battery life.
  • Swiss made gold plated spring loaded battery contacts.
  • External power supply from a well known brand (Meanwell)
  • Passive cooling.
  • Ability to be fed by a DC power source between 12-32 volts DC (Cart battery a Car, or a laptop brick)
  • Weight ~500 grams. (excluding power supply)
  • Dual LED : On each side of the slot, green or a red LED so you can see witch slot is charging more clearly, without being able to see the different colors.


Power supply specifications

Power 25 Watt
Input range: 85~264 Vac
Certificating: CE
Cooling : Passive

Protection :

Short circuit
Overload.
Over voltage

Charger specification

Charge rate each slot simultaneous : ~400mA
Charge end voltage accuracy: Within 1 % accuracy (all manually tested, and chips replaced if they did not meet this 1% criteria)
Protection :
  • Overheat Protection:
    Charger will cycle down charge current if module reaches above 65+- degrees Celsius.
  • Reverse Polarity Protection
  • Output over/under voltage
  • Over current protection
  • Short circuit protection
  • Thermal shutdown protection
  • Soft start
