Wisycom MTP61-EUX / MTP60-EUX Quad bundle
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

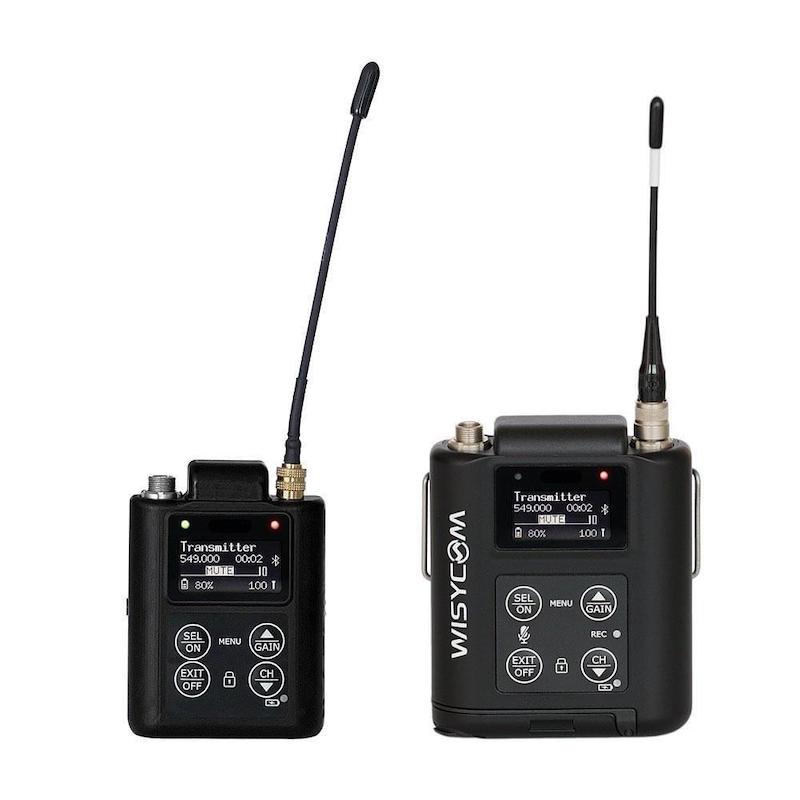

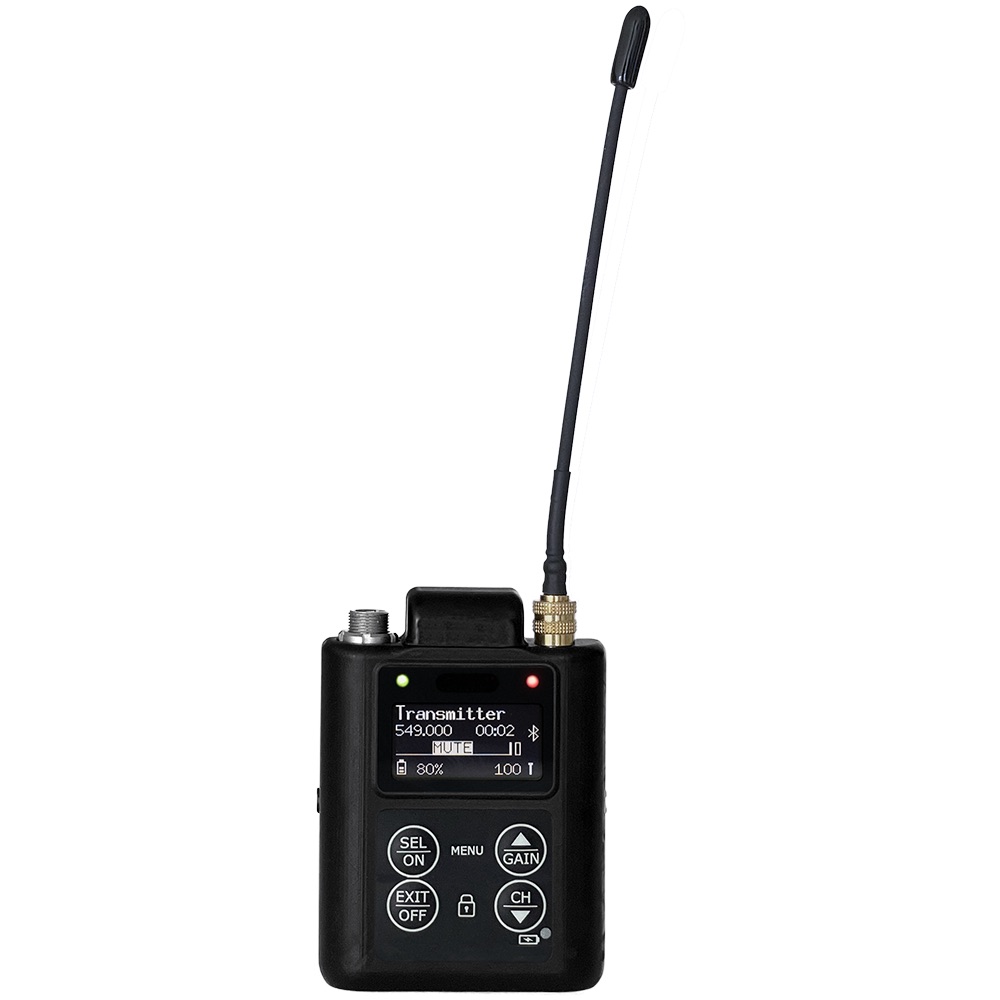

MTP61-EUX
MTP61 is a miniature pocket transmitter ideal for location sound, theater and all situations where the smallest size is mandatory
FEATURES
- The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
- Monitor & control with Bluetooth via Wisycom BT App to adjust parameters in real time
- The Bluetooth interface and mobile app allows full control from mobile or tablet
- Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
- Embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
- DSP based signal processing allows easy switching between wide and narrow band operation
- ENS compander for a totally clear sound
- Powering with Lithium-ion battery LBP61
- Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
- Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
MTP61 Specifications
| Frequency range | from 470 to 1260 Mhz, depends on the country (see Configurations) |
| Switchable channels | 2400 managed in 40 groups ofr 60 frequencies completely user programmable |
| Switching-window | Up to 362 MHz, depending on band (see Configurations) |
| Frequencies | Quartz PLL frequency synthesizer circuit (5 kHz step) |
| Frequency error | ±2.5 ppm, in the rated temperature range |
| RF Power |
10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW*
*on specific configurations |
| Antenna connector | SSMA |
| Modulation | Wideband and Narrow-band with DSP based digital signal processing |
| Nominal deviation | ±40 kHz Wideband / ±25 kHz Narrowband |
| Peak deviation | ±56 kHz Wideband / ±35 kHz Narrowband |
| Spurious emissions | < 2 nW |
| Telemetry feature |
TX transmits also a digitally modulated sub-carrier, suitable for:
tone-squelch operating remote battery monitoring, compander and modulation control optional PTT (push to talk) operation |
| Noise Reduction system | ENS - Wisycom ultra-high permorfmance compander |
| AF bandwidth |
Audio frequency response (dBa)
in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB) in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB) |
| Distortion | < 0.3 % (0.15 % typ.) |
| SND/D ratio (Analogue) |
typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56
kHz deviation Wideband
typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband |
| Audio input connector | LEMO 3pin |
| Audio input level |
from -40 dBu (12mV RMS) to 10 dBu (2.5 V RMS) adjustable in 1 dB steps
input dynamic extension with an integrated limiter |
| Max input level | +10 dBu (2.5 V) at clipping |
| Storage media | internal 64 GB micro SD memory card (industrial grade heavy duty) |
| Time code | Linear Timecode decoding |
| Bit rate | 24 bit / 32 bit |
| Sampling rate | 48 kHz |
| Managing interface | Bluetooth 5.2 low energy, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC) |
| LED | 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger |
| Battery level indication | percentage or minute/second |
| PTT function | Pin 3 of AF connector can be controlled via an externall PTT button |
| Display | High contrast OLED white display (128 x 64 pixels) |
| Power supply | Cameron Sino Lithium-ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh) |
| Battery life | approx. 8 hours @ 10mW |
| Temperature range | -10 ÷ +55 °C |
| Dimensions | 66,8mm x 47mm x 17mm (HxWxD) without clip |
| Weight | Approx. 72 g. without battery, 94 g. with battery |

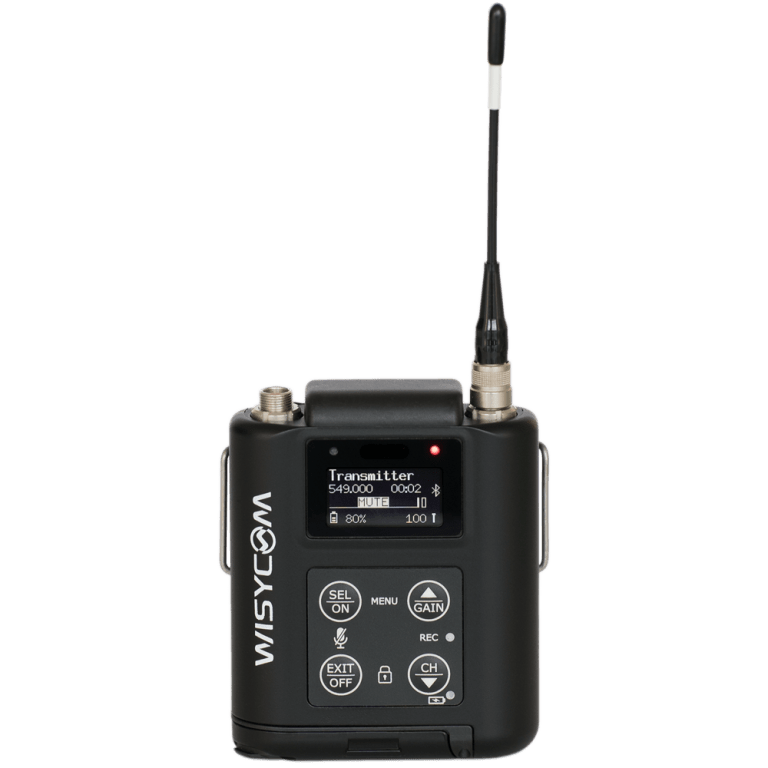

MTP60-EUX
MTP60 is a pocket transmitter specially designed for professional wireless microphone applications. Powered with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh) Small bodypack with ergonomic rounded edges for comfort in TV, theater, movies and other applications requiring discreet deployment.
Multi-Band RF
The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market offering a massive range of frequencies to choose from.
Bluetooth 5 Long Range
Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
Real Time Positioning
Dedicated hardware for accurate real time positioning and advanced user interface for accessibility assistive gestures.
LINEAR Intermodulation FREE
Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod
Ultrasonic HW Protection
Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
Embedded Recorder
Simultaneous transmit and audio recording on micro-SD (except in USA)
SW selectable with N Filters
FPGA based signal processing allows easy switching between wide and narrow band operation which, together with “Linear’ mode allows intermod free frequency planning with as little as 200kHz channel spacing
Haptic Engine
An integrated haptic engine that gives tactile feedback with different vibration patterns. This can also be activated by the remote control to discreetly alert users
Features:
- The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market (470 to 1075MHz)
- Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
- Dedicated hardware allows accurate real time position monitoring with advanced user interface.
- Advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
- Embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
- Enhanced robustness against self-interferences and antenna performances thru a proprietary “intermodulation cancellation” circuit
- An integrated haptic engine that gives tactile feedback with different vibration patterns
- FPGA based signal processing allows easy switching between wide and narrow band operation
- Miniature design with flexible PCB (no connectors) for extended reliability
- New ENS compander for a totally clear sound
- Powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)
- Bluetooth interface and mobile app allows full control from mobile or tablet
- Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
- Bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
- Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
- Max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments

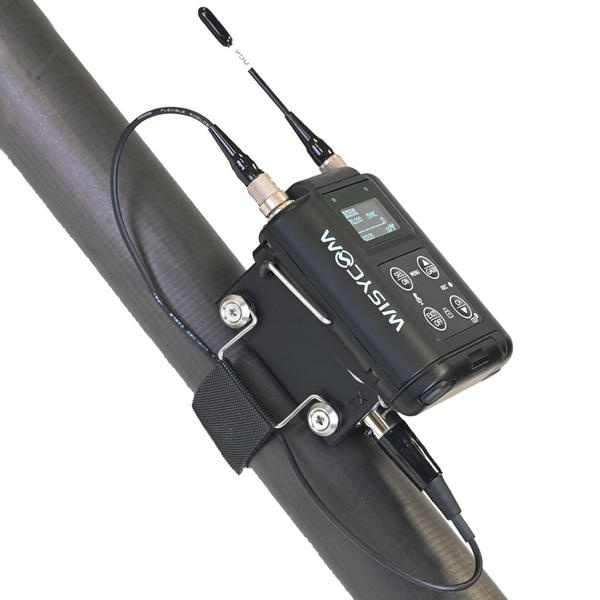

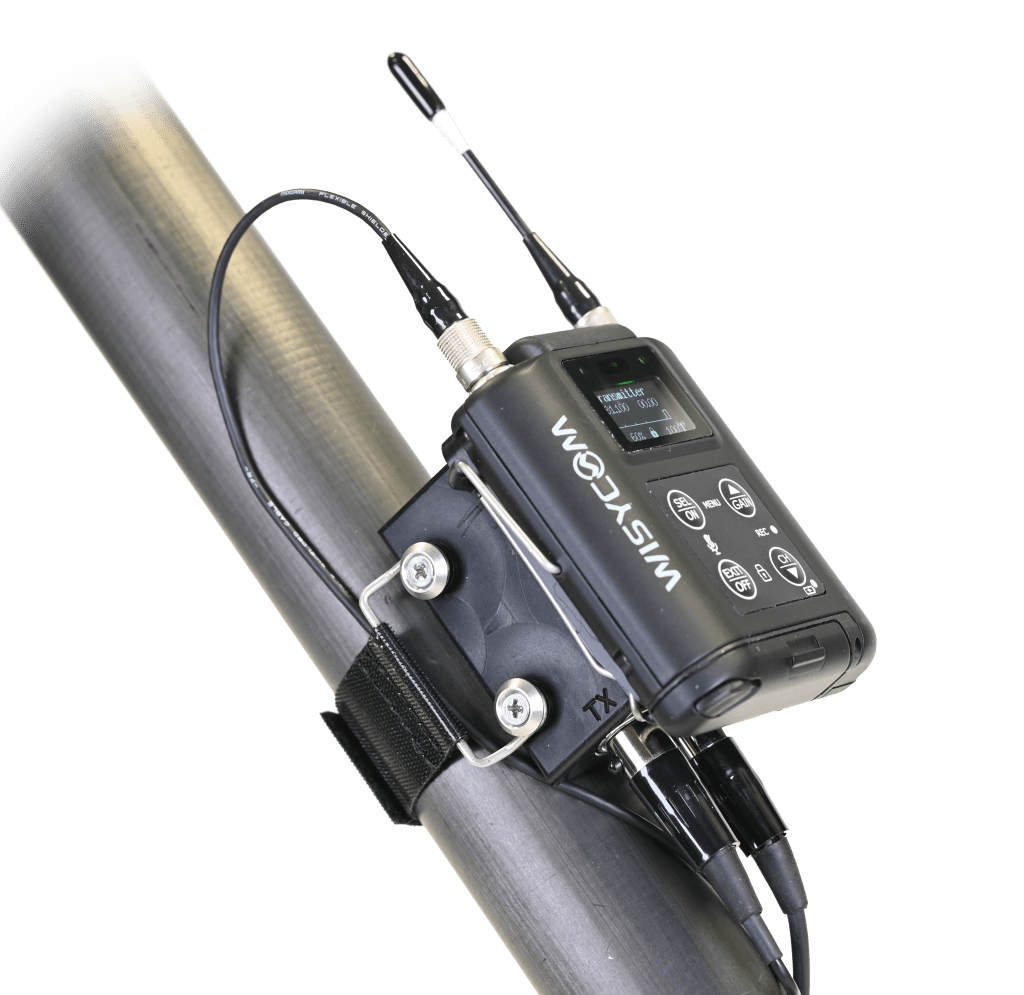

- 48V phantom power to use wired mic thru the PHA60 accessory

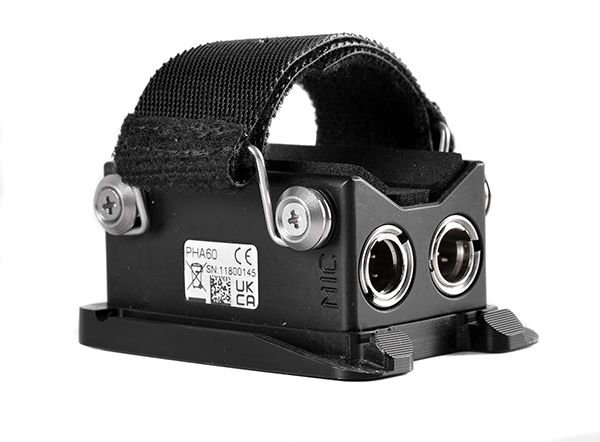

PHA60
MCR54

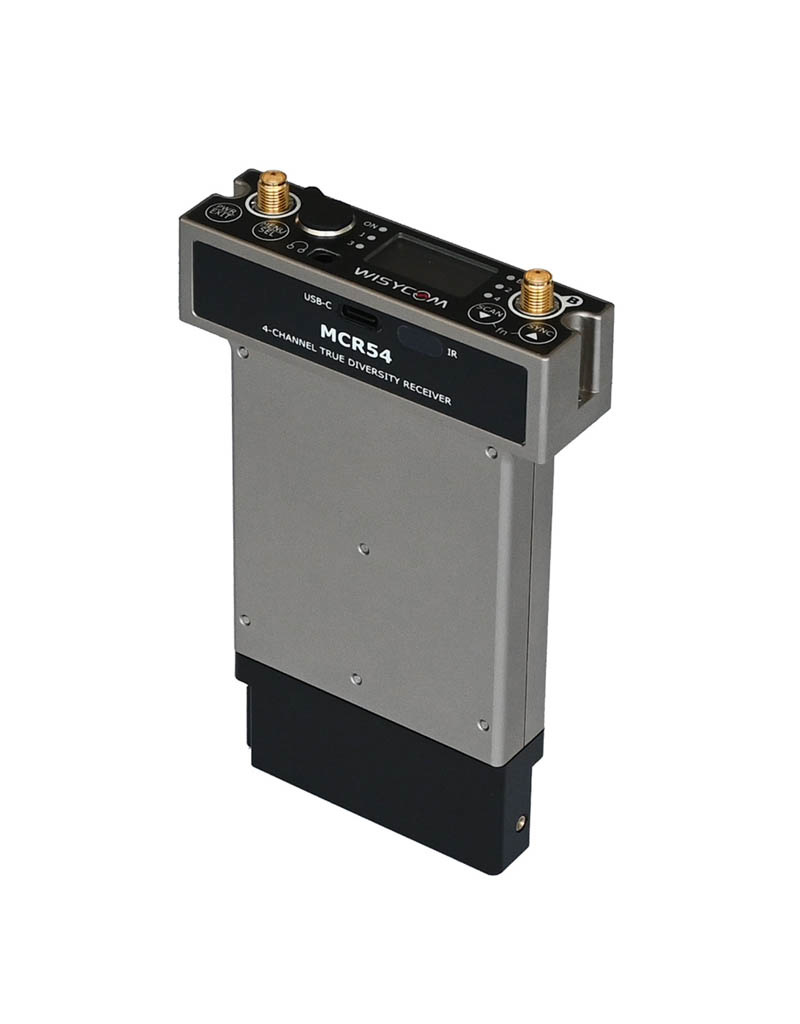

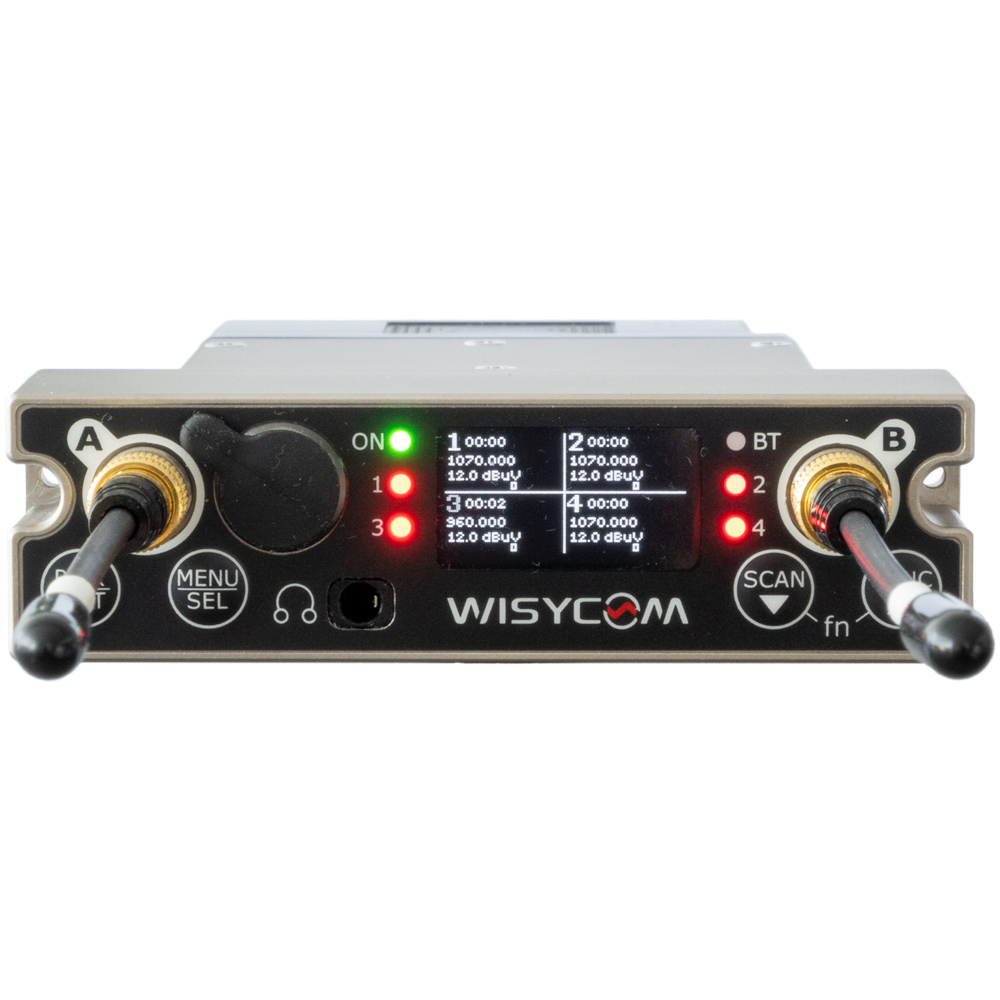

MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It’s compatible with most camera’s slots and “multi-slot” mixer accessories.
Multi-Band RF TuningWideband just isn't enough anymore! Upgrade to a Multi-Band system with up 790 MHz tuning range to find your frequency, anywhere in the World. |
|
High Density with NB FiltersWith eight internal receiver boards, the MCR54 boasts an unprecedented capacity for range and reliability. |
|
True-Diversity ReliabilityWith the combination of Narrowband Modulation and Linear transmitters, set your channels every 200kHz with-out intermodulation distortion and get an extra 3dB sensitivity. |
|
Multi CompandingDSP delivers ENC and ENR algorithms for perfect audio in any application with less than 1ms delay – with create and shape presets for the desired sound. It enables the use of third-party transmitters with Wisycom receivers |
Features
- Four channels True Diversity receiver (8 Receiver boards!)
- Exceptional compactness and high robustness
- DSP Analogue & Digital Audio Output (AES3)
- Up to 790 MHz bandwidth in 470/1260 MHz range
-
Next Gen Multiband front-end filtering:
- High Q electronically tunable filter in 470-800 MHz
- 1st narrowband filter
- 2nd narrowband filter
-
Wideband and Narrowband DSP-FM operation (SW selectable):
- Narrowband allows more 50% band efficiency
- Narrowband allows about 3dB extra sensitivity and noise immunity
- Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
- High contrast OLED display
- Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
- DSP based for extreme flexibility and multi-companding operations
- Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
- Rear antenna connectors and micro audio and power adapter
