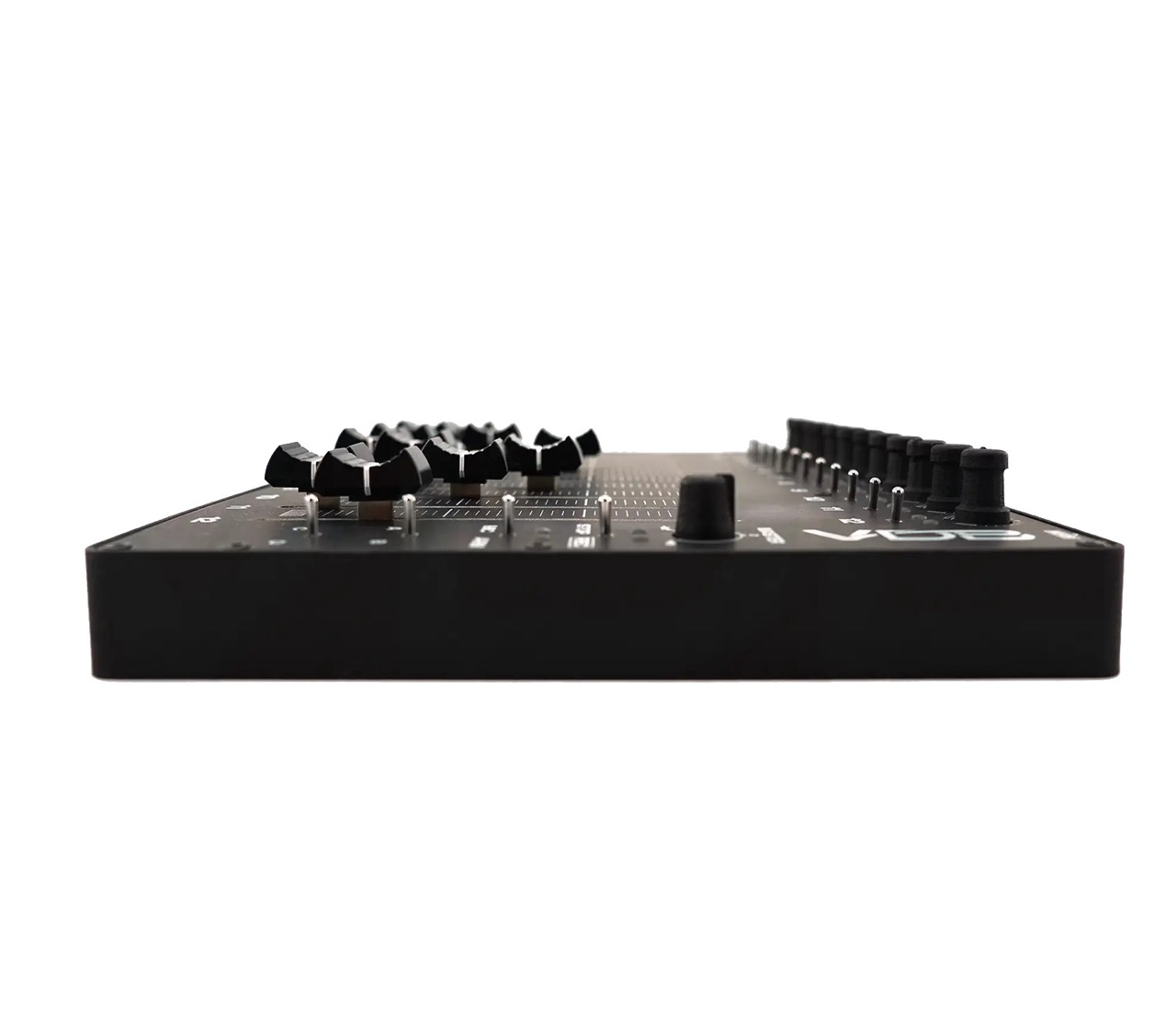

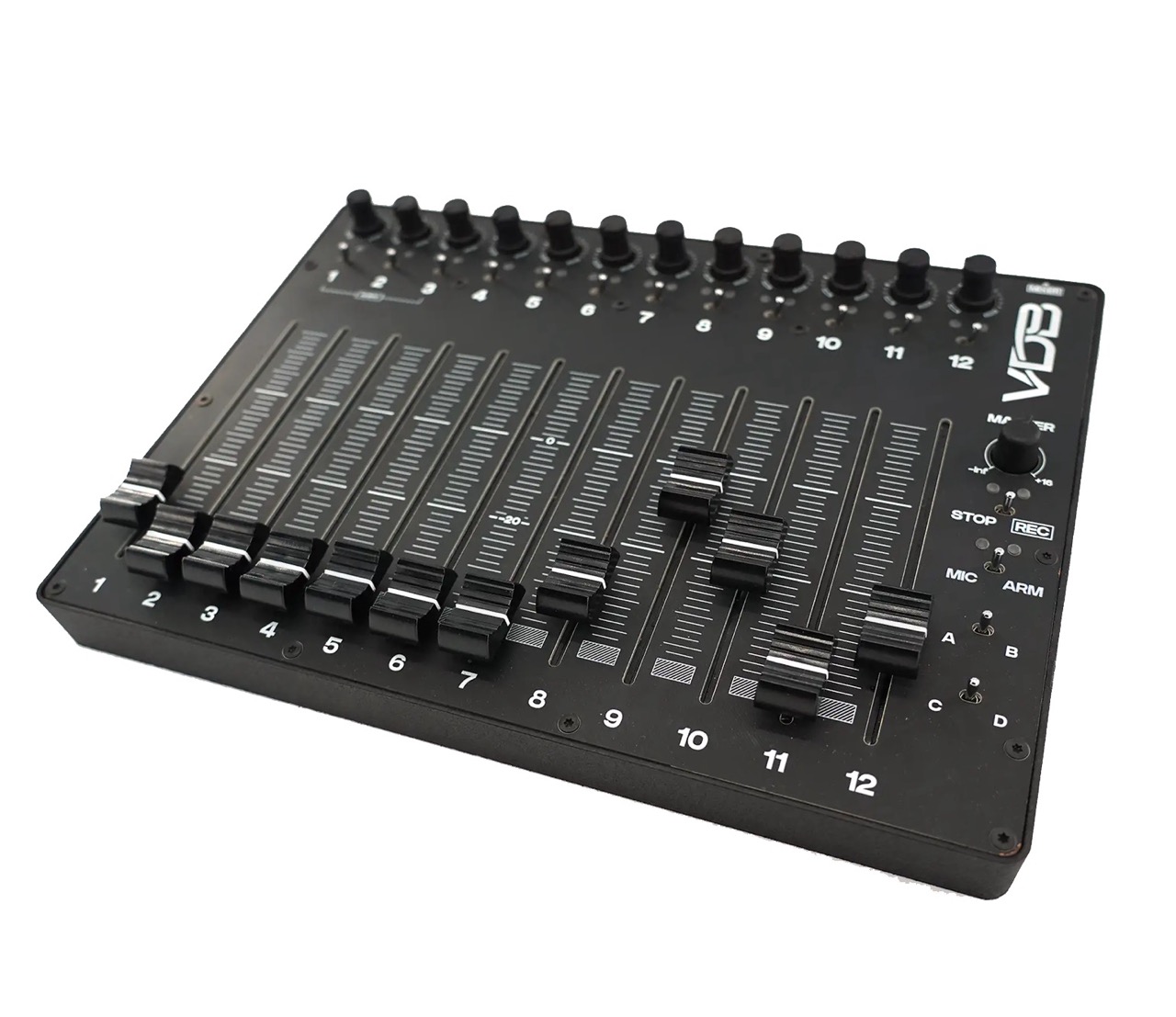

The FCS-12 12-Channel Control Surface is a compact USB controller suitable for the most demanding shoots, thanks to its robust aluminum and PA-12 nylon design. It features 12 rotary trim pots, 12 dust-protected faders and 12 PFL controls for controlling 12 channels of the recorder.
It also features controls for record, stop, Slate mic trigger, and a shortcut to arm or disarm tracks. PFL monitoring, track arm/disarm status, recording, and Slate mic activation are indicated by LEDs on the front of the control surface.
The control surface provides the user with a potentiometer corresponding to the Master fader, which can be assigned to any bus or output of the recorder. In addition, it has four assignable controls, from a list of recorder functions, such as activating Com circuits, monitoring, or assigning faders to buses or outputs.
Its 12 channels make it particularly suitable for use with 888 and Scorpio recorders, for use on the road. It is also very useful with an 833 equipped with the 4+ plugin. The FCS-12 control surface uses the MIDI MCU protocol, which makes it possible to use it with digital audio work software.
FAQ:
– Is the FINGER 12 control surface compatible with SOUND DEVICES MixPre?
No, it is only compatible with SOUND DEVICES 8-Series recorders (833, 888
and Scorpio). MixPre uses a different USB MIDI protocol that is not
supported by FINGER surfaces.
– Is the FINGER 12 control surface compatible with Aaton/Sonosax/Zaxcom
recorders?
No, it is only compatible with SOUND DEVICES Series-8 (833, 888 and
Scorpio). Other brands use proprietary protocols that are not supported by
FINGER surfaces.
– Is it possible to replace the faders on the FINGER 12 control surface?
Yes, the faders are easy to replace! Contact VDB to purchase a replacement
fader and follow the instructions provided. A T8 Torx screwdriver and a Phillips
screwdriver are the only tools needed. It will take less than half an hour
to replace a fader.
– Does the FINGER 12 control surface have attachment points?
Yes, the FCS12 has three 1⁄4” (not Kodak) screw threads close to the
center of gravity. This allows the controller to be attached to an
articulated arm, to the frame of a bag or to the sliding shelf of a
trolley, for example.
– Which controller should you choose between the FCS8 and FCS12?
It all depends on your usage and the recorder you have. The FCS8 is more
suited to lightweight filming. It fits easily into a backpack and can be
installed on a bag. The FCS12 is more suited to use on wheels, but offers 12 channels which makes
it suitable for almost any type of filming.

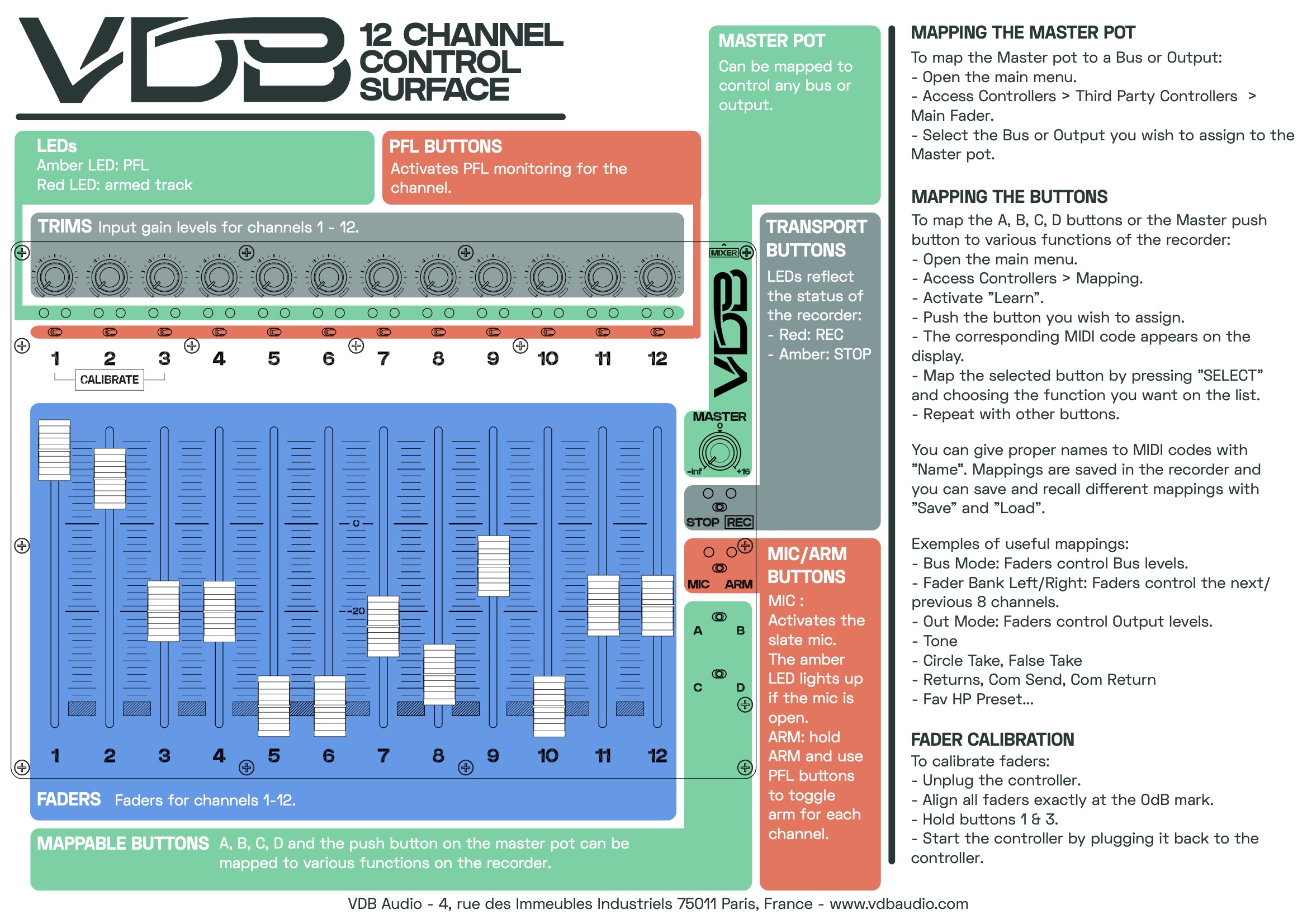

– How do I assign the FCS12 buttons to recorder functions?
To assign the buttons to recorder functions, go to menu > controllers
> mapping. Using the buttons below the display, activate “learn”, then
activate the button on the controller. A line appears on the recorder
display with the MIDI code of the associated button. Highlight the line
with the Select encoder, then click the encoder to bring up the list of
assignable functions. Select one of these functions to assign it to the
button.
– Can I use other USB cables with the FCS12? Why can’t I use a USB-C
cable?
FINGER controllers are compatible with all USB-A to USB-B cables. The USB-B connector was chosen for several reasons. One is the robustness of
the cables and connectors. The other reason is that USB-B cables contain
all the power and data channels, unlike USB-C cables.
– What’s in the FINGER 12 controller box?
The box contains the user manual, a black USB type B to USB type A cable
of one meter length, a velcro strip for customization and the FINGER 12
controller.
