Tentacle Sync TIMEBAR Timecode Slate

The TIMEBAR Timecode Slate is our all-in-one digital timecode slate kit, designed for seamless integration with the entire Tentacle Sync ecosystem. We‘ve collaborated with premium slate maker Filmsticks to create this unique, versatile solution. The kit includes the TIMEBAR - a multipurpose timecode display—paired with a high-quality board, clapper sticks and a custom holder, that also serves as a mount for the TIMEBAR. This lightweight, yet robust, setup not only enhances portability but offers flexibility on set. The TIMEBAR can be swiftly attached or detached from the slate, functioning independently as a timer, message display or stopwatch, whether mounted or not, all controlled effortlessly via our Setup App.

The OLED display not only provides high contrast, but also ensures low energy consumption, allowing the TIMEBAR to last throughout the entire day.

Additionally, the slate is built for longevity, with every component being user-replaceable. Even the long-lasting built-in lithium battery can be easily swapped by users after years of use, ensuring continued reliability. The TIMEBAR Timecode Slate is the ultimate tool for precise timecode management and efficient production workflows.

FEATURES

• Precision-engineered Acrylic Board
• Durable Clapper Sticks

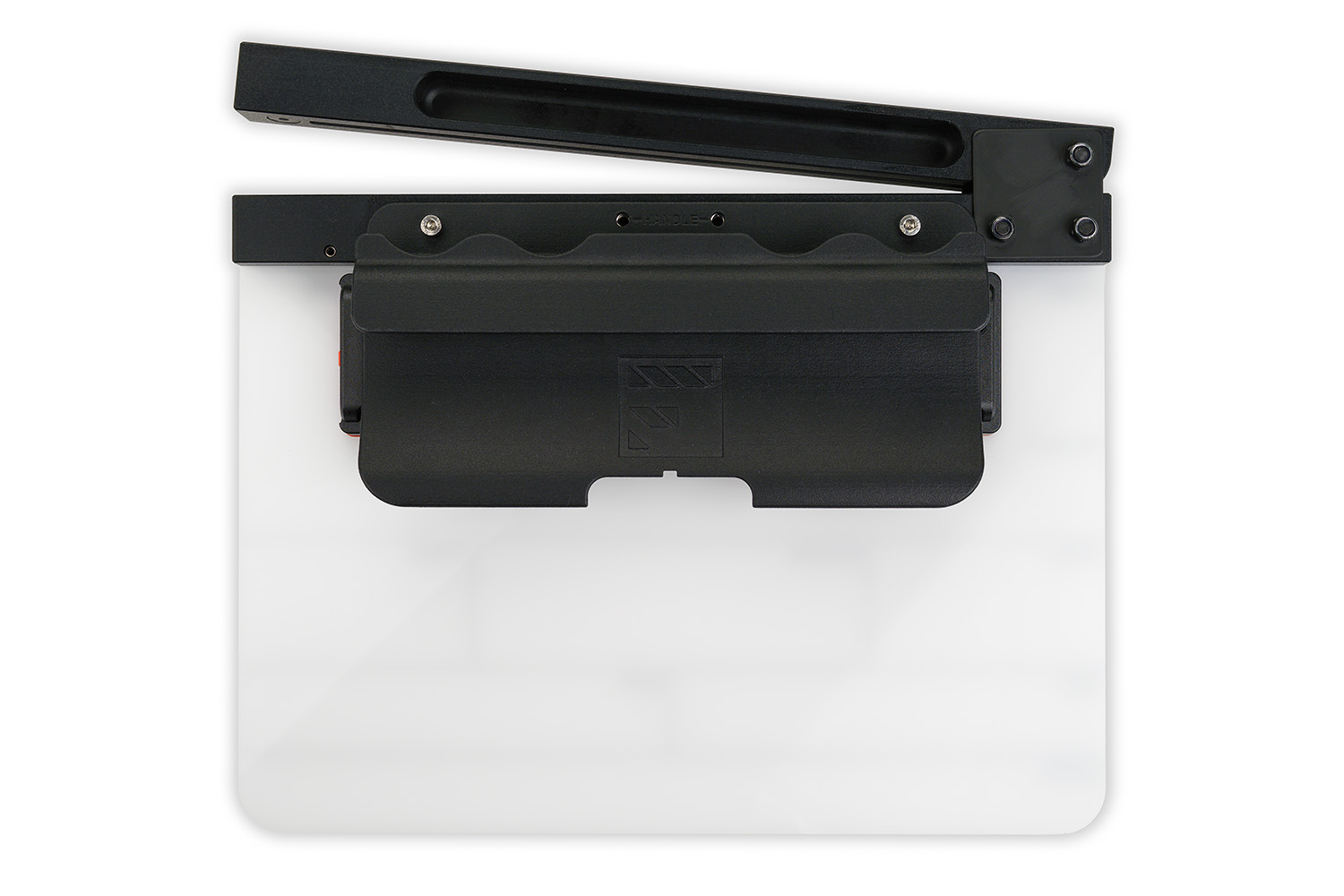

• Custom-designed TIMEBAR Holder/Mount

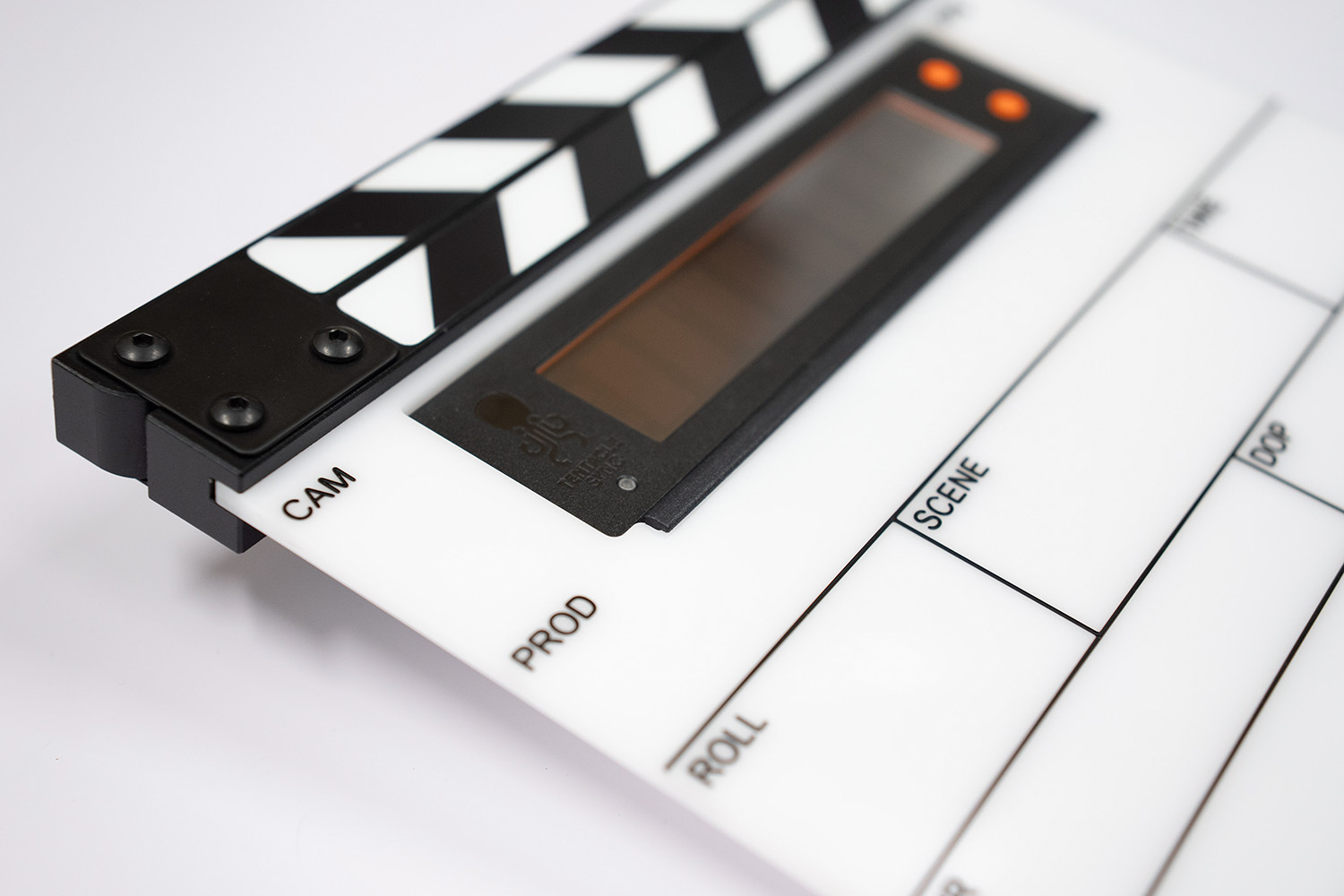

• High-contrast OLED Technology with a Wide Viewing Angle
• Typical Battery Runtime 24 hours
• Control, Sync & Operate all devices via Bluetooth®
• Timecode Generator with TC In & Out
• Timer & Stopwatch Functionality
• Text Display
• Tentacle Sync Studio Software License included (macOS)
• Limited Two Year Warranty
• TIMEBAR Designed and Manufactured in Germany

TECHNICAL SPECIFICATIONS

Connectivity

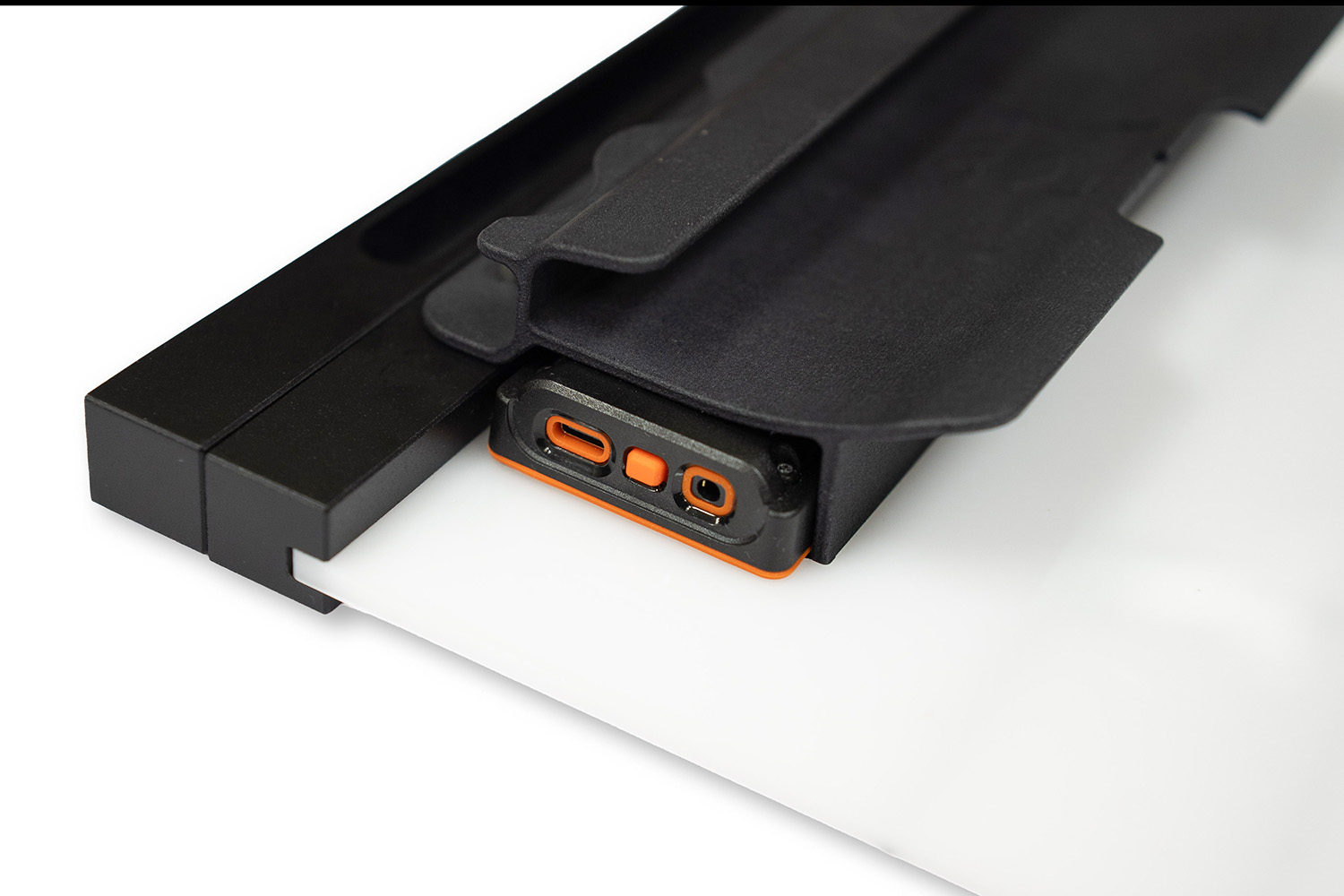

• 3.5 mm Jack: Timecode In/Out
• USB Connection: USB-C (USB 2.0)
• USB Operating Modes: Charging, Firmware Update

Control & Sync

• Bluetooth®: 5.2 Low Energy
• Remote Control: Tentacle Setup App (iOS/Android)
• Synchronization: Via Bluetooth® (Tentacle Setup App)
• Jam-Sync via Cable
• Timecode In/Out: LTC via 3.5 mm Jack
• Drift: High Precision TCXO / Accuracy less than 1 frame drift in 24 hours (-30°C to +85°C)
• Frame Rates: SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF, 30

Power

• Power Source: Built-in rechargeable Lithium Polymer Battery
• Battery Capacity: 2200 mAh
• Battery Operation Time Slate Mode: minimum 2 weeks
• Battery Operation Time Continuous Mode: approx. 6 (highest brightness) to 80 hours (lowest brightness)
• Battery Charging Time: Standard Charge: 4-5 hours, Fast Charge: 2 hours

Hardware

• Weight: 786 g /  27.7 oz (including battery)
• Dimensions: 280 x  226 x 43 mm / 11 x 8.9 x 1.7 inches

WHAT'S IN THE BOX?

• 1 x TIMEBAR - Multipurpose Timecode Display
• 1 x Acrylic Board (280 x 190 x 5 mm / 11")
• 1 x Clapper Sticks
• 1 x TIMEBAR Holder/Mount
• 1 x 3.5 mm to Straight BNC Cable
• 1 x USB-A to USB-C Cable
• 1 x Zipper Bag Long
• 1 x Software License for Tentacle Sync Studio (macOS)
• 1 x 1.5 mm Hex Key
