Sound Devices SL-2
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

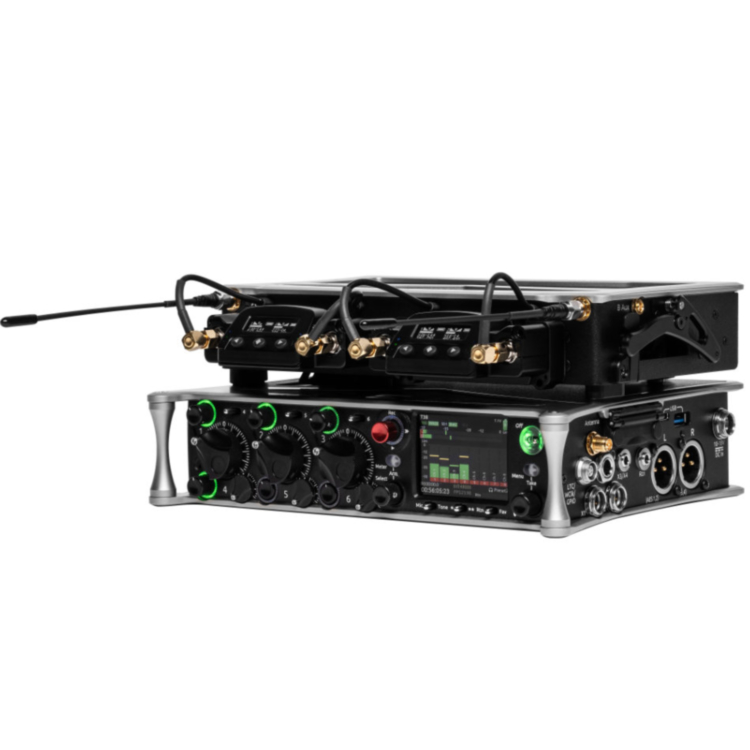

Streamline your bag with the SL-2 Dual SuperSlot Wireless Module. This two slot-in wireless receiver integration system easily mounts to the top panel of any 8-Series mixer-recorder. UniSlot and SuperSlot wireless receivers from a variety of manufacturers are accepted, including Audio Ltd, Lectrosonics, Wisycom and Sennheiser. The SuperSlot protocol supports up to four channels of wireless audio per slot.

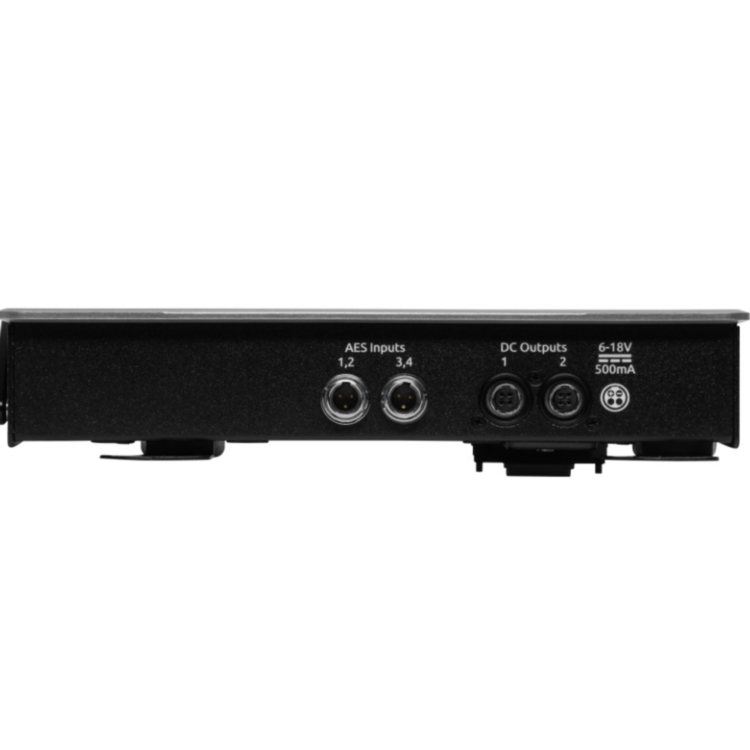

An 8-Series mixer-recorder supplies power to the SL-2 and slotted-in receivers, no external DC connector needed. Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity. The SL-2 offers antenna distribution to the slot-in receivers, spreading out the placement of antennas for better RF performance. The rear panel of the SL-2 is equipped with two TA3 connectors for an additional four inputs of AES3 audio and two 4-pin Hirose DC outputs, each supplying up to 500 mA for powering additional equipment.
FEATURES:
- compatible with the 833, 888 and the Scorpio
- accepts two UniSlot or SuperSlot wireless receivers from Audio Ltd, Lectrosonics, Sennheiser and Wisycom
- built-in antenna distribution with antenna powering for active antennas or boosters
- supports remote control of third party smart antennas

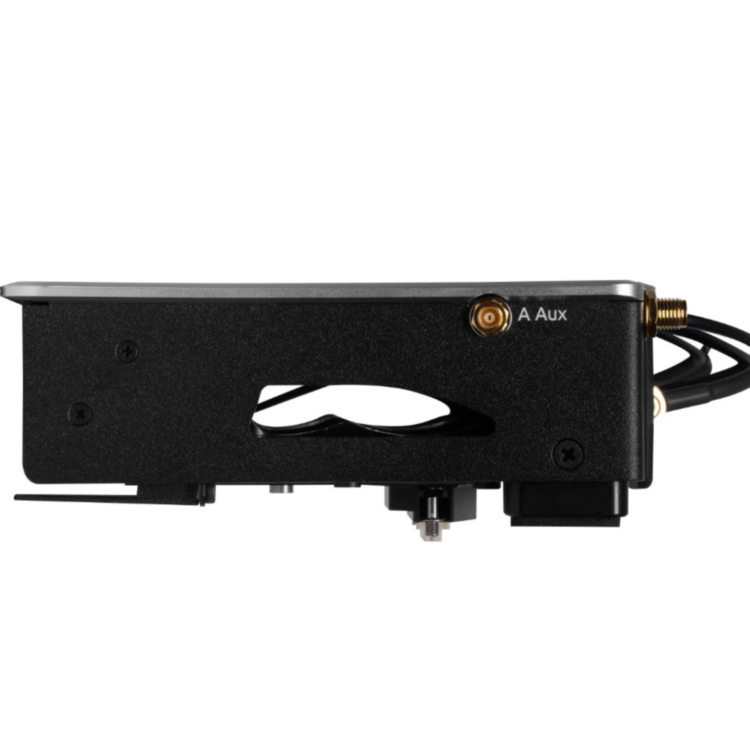

- two auxiliary MCX antenna ports for connecting other receivers or RF distribution
- two TA3 AES3 inputs for an additional 4 channels of digital audio
- two DC Outputs via Hirose 4-pin connectors, each supplying up to 500 mA
- powers via an 8-Series mixer-recorder
- accepts either analog or digital audio from slot-in receivers
- ability to set and monitor multiple functions of a SuperSlot-compatible receiver from the 8-Series mixer-recorder
- RF scan with visual representation of the RF spectrum
- monitor transmitter battery, receiver audio and RF levels
- rugged, lightweight, and compact design
- mounts to the top of any 8-Series mixer-recorder
- same width as the 833
- powering: all power supplied by host 8-series machine
- antenna impedance: 50 Ohm
- antenna powering: 12V at 200 mA, menu selectable on/off
- serial remote control, Wisycom-compatible for ADFA & LFA powered antenna etc.
- input RF attenuators: 0 to -18dB, in 6 dB steps, menu selectable
- RF outputs: auxiliary antenna outputs for additional receiver
- DC outputs 1-2: 500 mA max (each), 6-18 VDC passed through from host 8-series machine, depending on power source. Hirose 4-pin connector: pin 4 = +, pin 1 = ground.
- AES Inputs: two pairs for a total of four channels, AES-3 balanced, 110 Ohm, TA3 connectors
- dimensions: (H x W x D) 4.5 cm x 21.3 cm x 13.1 cm
- weight: 0.61 kg (unpackaged)
ANTENNA PRE-SELECT FILTERS:
- menu selectable
- wideband/bypass (low pass filter, 1.7 GHz upper cut-off)
- 470-614 MHz
- 542-694 MHz
- 606-770 MHz
- 770-960 MHz
