Sound Devices CL-16
Linear fader controller for 8-Series (833, 888, Scorpio). 16 P&G faders & 16 dedicated trims.
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K033919
The CL-16 Linear Fader Control Surface for 8-Series combines the simplicity of traditional analog consoles with the power and flexibility of digital consoles. This bespoke control surface enhances the experience of cart-based mixing with its intuitive operation, 16 silky-smooth faders, 16 dedicated trims and a glorious panoramic LCD. All of this is elegantly engineered into a 16.3 inch / 41.4cm wide compact unit which fits in a cart and operates from 12 V DC.
FEATURES:
compatible with the 888 and Scorpio, with support for the 833 in a later firmware update
16 dedicated rotary trim controls
16 dedicated faders
intuitive design philosophy where channels 1-16 have dedicated, non-banking controls like a traditional analog console and other important features may be quickly accessed 32 multi-function rotary controls for EQ, pan, channels 17-32 gains, bus gains, output gains and more
large, sunlight-readable LCD screen folds down for easy and safe storage and transport
high-reliability, silent, soft-touch buttons for key functions like record, stop, metadata, coms, returns and more
five user-assignable buttons
built-in 5-port USB hub with (two USB-C and three USB-A) for keyboards, SD-Remote tablet and other USB peripherals
6.35mm and 3.5mm headphone jacks

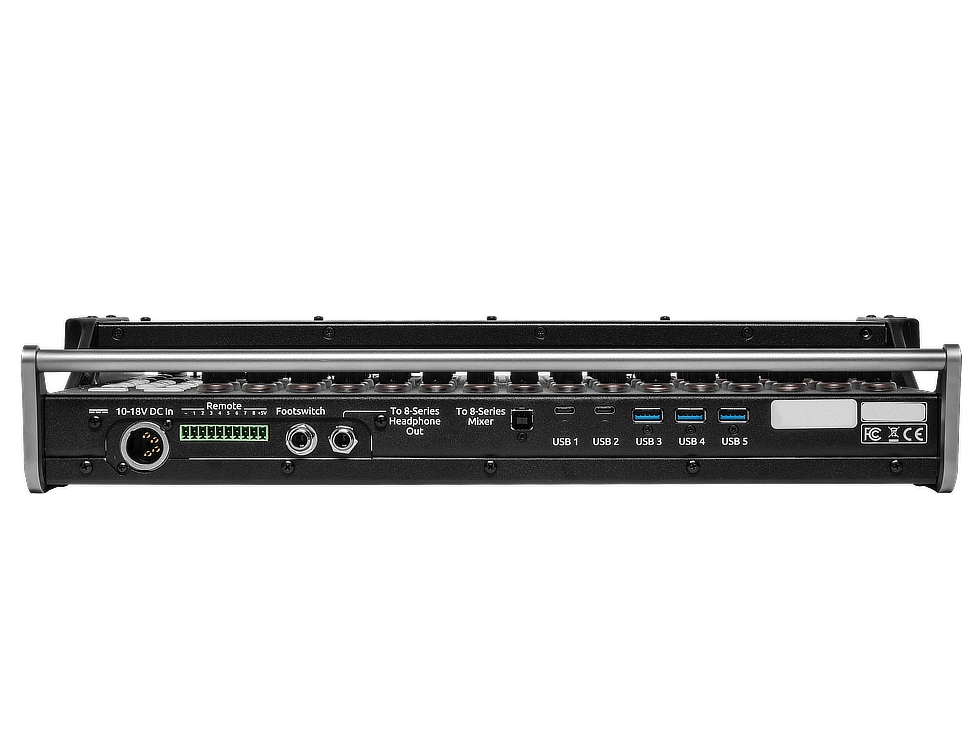

remote 10-pin connector for custom wiring of LEDs and switches, along with 6.35mm foot pedal input
connects via USB-B
12V DC-powered via 4-pin XLR (not included)
16 ultra-smooth gliding Penny & Giles 100 mm linear faders best feeling faders on the market
quick bottom panel access for field servicing of faders
ships with USB-A to -B cable, 6.35mm to 6.35mm TRS cable and 10-pin Phoenix screw terminal block.
Product information
The CL-16 Linear Fader Control Surface for 8-Series combines the simplicity of traditional analog consoles with the power and flexibility of digital consoles. This bespoke control surface enhances the experience of cart-based mixing with its intuitive operation, 16 silky-smooth faders, 16 dedicated trims and a glorious panoramic LCD. All of this is elegantly engineered into a 16.3 inch / 41.4cm wide compact unit which fits in a cart and operates from 12 V DC.
FEATURES:
compatible with the 888 and Scorpio, with support for the 833 in a later firmware update
16 dedicated rotary trim controls
16 dedicated faders
intuitive design philosophy where channels 1-16 have dedicated, non-banking controls like a traditional analog console and other important features may be quickly accessed 32 multi-function rotary controls for EQ, pan, channels 17-32 gains, bus gains, output gains and more
large, sunlight-readable LCD screen folds down for easy and safe storage and transport
high-reliability, silent, soft-touch buttons for key functions like record, stop, metadata, coms, returns and more
five user-assignable buttons
built-in 5-port USB hub with (two USB-C and three USB-A) for keyboards, SD-Remote tablet and other USB peripherals
6.35mm and 3.5mm headphone jacks
remote 10-pin connector for custom wiring of LEDs and switches, along with 6.35mm foot pedal input
connects via USB-B
12V DC-powered via 4-pin XLR (not included)
16 ultra-smooth gliding Penny & Giles 100 mm linear faders best feeling faders on the market
quick bottom panel access for field servicing of faders
ships with USB-A to -B cable, 6.35mm to 6.35mm TRS cable and 10-pin Phoenix screw terminal block.
