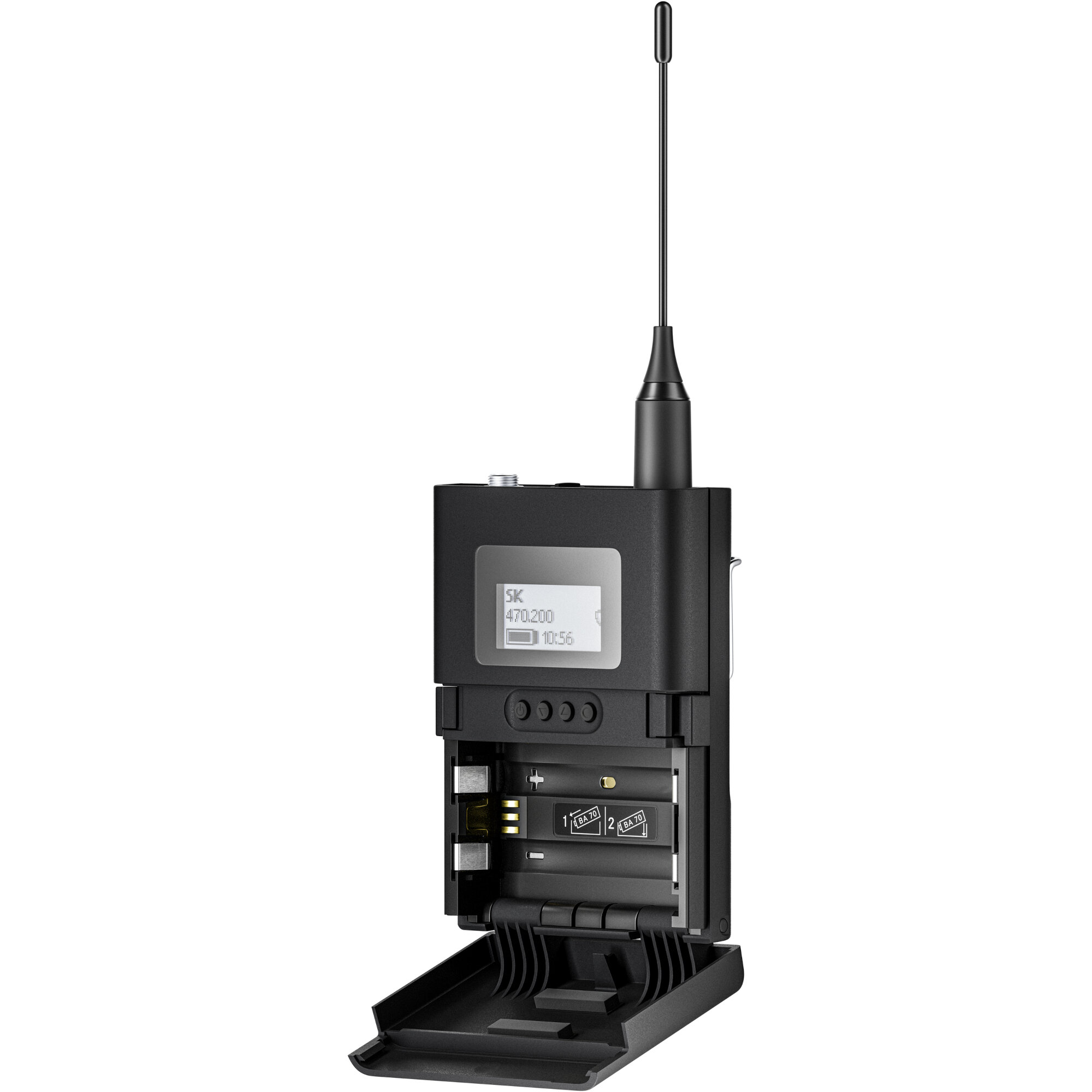

Sennheiser EW-DX SK 3-PIN R1-9
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Simplify your wireless workflow
The EW-DX SK Lemo 3 version makes it easy to transmit signals wirelessly. The built-in function buttons make it easy to control straight from the bodypack - including a button lock function so settings aren't accidentally changed while in use. As well as this, the persistent E-Ink display means you can always see what settings you have been using - even when changing batteries; useful for keeping track of different wireless bodypacks.
Thanks to Autoscan you can set up your wireless system too. At the push of you can get multiple transmitters set up at equidistant frequency intervals; great if you want a super-scalable system to work with. And as well as this there are a wide range of Sennheiser apps you can use to manage and control your wireless setup - great if you are looking to configure a large system.
Features
- Sennheiser Performance Audio Codec (SePAC) means you never need to set gain, and you get a 134 dB range
- Up to a 100 m range you get 10mW fixed RF power
- E-Ink display persistently shows information and parameters – even when switching batteries
- Charging contact allow for in-device charging with separately available CHG 70N charger
- Control all transmitter settings from the bodypack with built-in function buttons
- Mute button programmable to be RF mute, AF mute or disabled
- Both digital audio and mic input trim control available
- Test tone generator available for testing and troubleshooting
- LED configurable to be on or off
- Low cut switchable to be off, 30, 60, 80, 100 or 120 Hz
- Instrument input has cable emulation to simulate the characteristics of cables
- Works with a range of Sennheiser lavaliers and headsets with 3p Lemo plug connections
- Rugged metal housing designed for use on stage
- Use in any RF environment (subject to local regulations)
Specifications
System
- Bluetooth® Low Energy (BLE) frequency range: 2402 – 2480 MHz
- Audio frequency response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Operating temperature range: -10 °C – +50 °C
- Relative humidity: 5 – 95% (non-condensing)
EW-DX SK Bodypack Transmitter
- Input voltage: 2.0 – 4.35 V
- Input current: < 300 mA
- Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth: 200 kHz
- Transmission power:
- Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions: 63.5 x 85 x 20 mm (without antennas)
- Weight (without batteries): approx. 115 – 120 g
