Sennheiser EW-DX 835-S Set Q1-9
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
New and improved technology
The EW-DX system is a new step forward for their digital UHF technology. Advanced features, simple and easy workflow, and reliable sound quality combine to make a professional system that's expandable and well-suited to everything from modest live music venues to gigantic arenas and festivals.
Easy control
Sennheiser have developed the new EW-DX system to be as simple, customisable, and easy to use as possible. Auto Scan automatically assigns channels to each transmitter and receiver in your system with even tuning to prevent interference while offering as much space for channels as possible. Utilising deep software control from mobile via the Sennheiser Smart Assist app, or deeper control and customisation from the Sennheiser Control Cockpit and Wireless Systems Manager on computer.
Stable transmission and clear sound
Sennheiser have spent time developing improved dynamic range and minimal latency to ensure that their EW-DX systems sound clean, clear, and responsive. They didn't stop there either, as this new range features their own proprietary audio codec SePAC and brand-new conversion to make sure your audio is accurate and full. Plus, Intelligent Switching Diversity allows switching of antennas between audio frames to eliminate artifacts.
What's in the box
- 1 x EW-DX rack receiver
- 2 x EW-DX SKM-S handheld transmitter
- 2 x MMD 835 microphone capsule
- 1 x EW-D power supply with country adapters
- 2 x BA 70 rechargeable battery packs
- 1 x MZQ 1 microphone clamp
- 2 x rod antennas
- 1 x GA 3 rackmount kit
- 4 x rubber feet
Features
- Dual wireless system for professional live sound
- Well-suited to larger venues and events
- Consists of two handheld wireless microphones with 835-1 capsules, stationary receiver and two batteries
- Network enabled for wireless remote control from a broad range of apps and software
- Secure AES 256 encryption for secure audio transmission
- High input dynamic range removes need to set gain on transmitters
- Proprietary Sennheiser Performance Audio Codec SePAC maintains audio quality and clarity
- Up to 100 m operating range with line-of-sight
- Charging contacts for in-device charging
- High battery life from included rechargeable lithium ion battery for up to 12 hours of use
- Function buttons for instant on-board transmitter setting control
- Equidistant channel spacing maximises available channels while preventing interference
- Switching bandwidth of up to 88 MHz
- Ultra-low 1.9 ms latency for highly responsive audio
- 3.5 mm jack plug suitable for use with Sennheiser headsets and lavalier microphones
- Digital audio trim for level setting
- Test tone generator allows you to check your system is up and running
- Switchable LED configuration for on/off display
- Switchable low-cut filter at 30, 60, 80, 100, or 120 Hz for cutting low-frequency rumble
- Handheld transmitter utilises Sennheiser Standard Capsule Interface for use with Sennheiser and Neumann microphone capsules (sold separately)
Specifications
System
- Audio Link Frequency Range: Q1-9: 470 - 550 MHz
- Bluetooth Low Energy (BLE) Frequency Range: 2405 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBFS
- Total Harmonic Distortion: ≤ -60 dB for 1 kHz @ -3 dBFS input level
- Dynamic Range: 134 dB
- RF Technology: Intelligent Switching Diversity
- Operating Temperature: -10°C - +55° C (14°F - 131°F)
- Operating Relative Humidity: 5 - 95% (non-condensing)

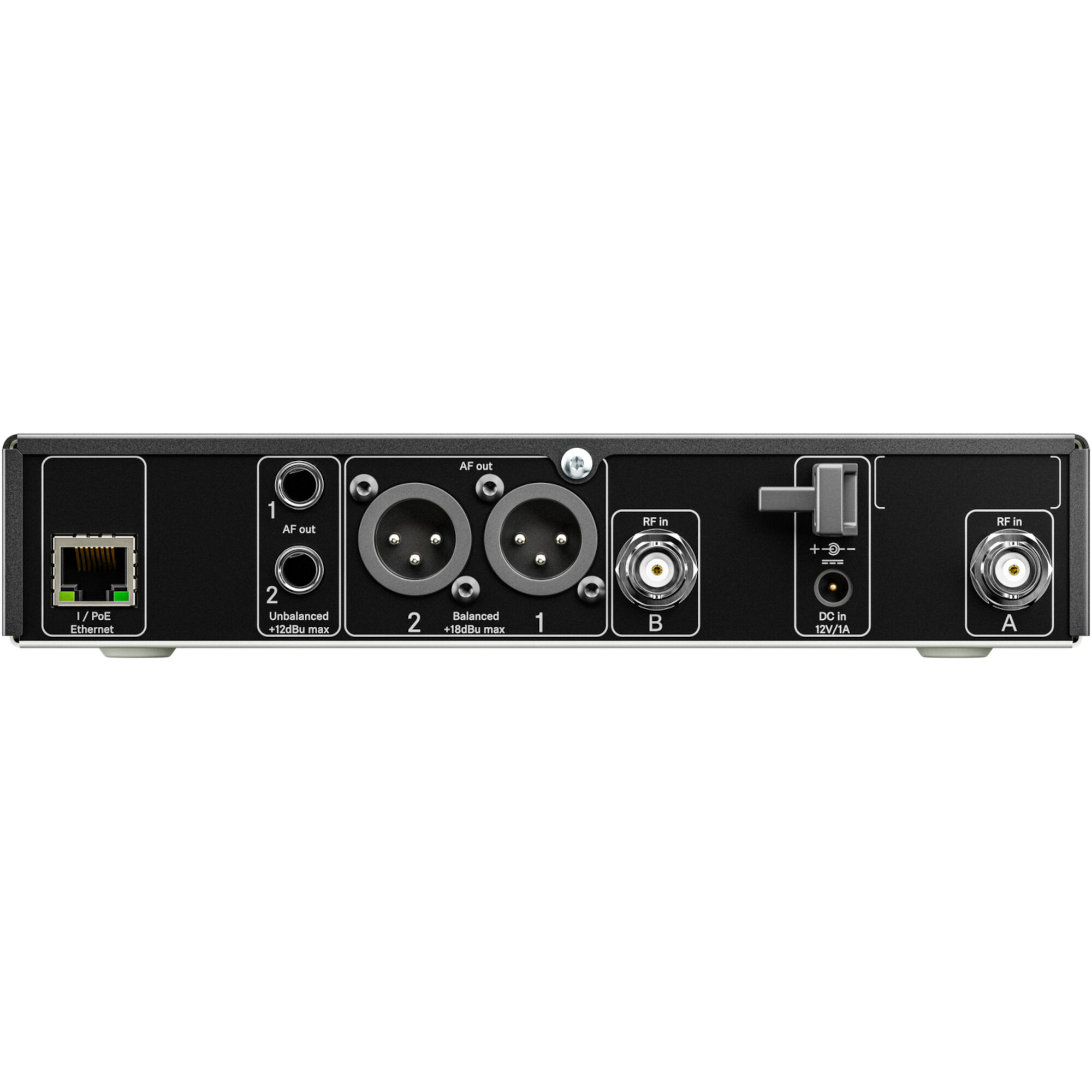

EW-DX EM 2 Rack Receiver
- Input Voltage Range: 11 - 13 V DC or PoE IEEE 802.3af Class 0
- Input Current: ≤ 1 A
- Transmit Power (radiated): BLE: max. 10 mW EIRP
- Audio Output Power: 18 dBu max.
- Ethernet:
- RJ-45 socket, IEEE802.3
- 100Base-TX (half+full duplex)
- 10Base-T (half+full duplex)
- (CAT5e or higher)
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (2.2 lbs) (without batteries or antenna)
EW-DX SKM Transmitter
- Input Voltage: 2.0 - 4.35 V
- Input Current: ≤ 300 mA
- Power Supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack (sold separately)
- Occupied Bandwidth: 200 kHz
- Transmit Power (radiated):
- Audio link: 10 mW ERP
- (Range Y1 - 3): 12 mW ERP
- LD mode: 10 mW ERP
- BLE: max. 10mW EIRP
- Dimensions: 40 x 200 mm (without microphone module)
- Weight without batteries: approx. 195 g (without microphone module)
MMD 835 Microphone Module
- Transducer Principle: Dynamic
- Sensitivity: 2.1 mV/Pa
- Sound Pressure Level: 154 dB SPL
- Pick-up Pattern: Cardioid
