Sennheiser EW-D ME3 S1-7

Get your talent heard

Whether you’re a singer, public speaker, or spoken word artist, you need total clarity to get your message across. That’s why the Sennheiser EW-D ME3 Wireless Headset Set comes with an ME 3 headset mic included. Its sub-miniature condenser element is favoured for its high speech intelligibility and cardioid polar pattern, ensuring that background and ambient noise is pacified. It’s comfortable to wear over your ear, remaining secure even during the liveliest of events. Enjoy clean, undistorted audio, even when you’re performing with passion. High SPL handling capabilities allow you to reach up to 150dB without affecting your sound quality.

Become your own engineer

All you need is an Android or iOS device. With the Evolution Wireless System, it’s easy to manage your workflow from the free Smart Assist app. Alongside comprehensive control from the receiver, you can alter parameters from anywhere in the room. Take advantage of automated setup that intelligently creates wireless connections, colour code and name channels/subjects, and allocate frequencies with wireless channel naming. The centralised control eliminates complicated menu navigation, maximising your workflow and streamlining your operation. It even has a working ‘demo’ mode so you can use the app before you buy the hardware.

Sound that gets you noticed

Next generation technology for the next generation of live performers. The Evolution Wireless System gets every detail of your talent heard with a wide dynamic range. Unlike lesser systems, microphone sensitivity doesn’t have to be reduced to prevent your transmitter from overloading. Instead, the EW-D’s unrivalled 134dB dynamic range allows for the highest input of any wireless system ever. You’ll hear the deepest lows and the brightest highs, all without distortion getting in the way.

Space to perform

The wireless spectrum is always getting more crowded. But with EW-D, you’ll never have to worry about finding space. With an extended 56 MHz bandwidth, you’ve got room for more microphone channels, resulting in crisp, clean reception. Because the Evolution Wireless System is scalable up to 90 channels, you’ve got unrestricted access to a larger part of the frequency spectrum no matter where you go. The result? Flawless signal integrity every time you perform.

Less interruptions…

… and less interference. Evolution Wireless has corrected the age-old problem of transmitter overload. Where older wireless systems would require complex calculations to prevent intermodulation, the EW-D uses Equidistant Spacing, allowing you to use multiple transmitters in close proximity. As soon as you find a clean channel, you can use it safely without harming your system.

Wide compatibility

Although The Sennheiser EW-D ME3 Wireless Headset Set comes with a microphone included, the EW-D SK transmitter is compatible with Sennheiser’s wide range of microphones, giving you the freedom to tailor your wireless system to you exact needs. Compatible mics include (but are not limited to) MKE Essential, MKE 1-EW-3, ME2-II, ME3 II, ME 4-N, HSP Essential, HSP 4, HSP 4-EW, SL HEADMIC 1, and SL HEADMIC 1-4 series.

What’s in the box

• 1 x EW-D EM rack receiver
• 1 x EW-D SKM-S handheld transmitter
• 1 x ME 3 headset microphone
• 2 x Rod antennas
• 1 x Power supply with country adapters
• 1 x Rackmount set
• 4 x Rubber feet
• 1 x Quick guide
• 1 x Safety guide
• 1 x Manufacturer declaration sheet

Features

• Versatile headset microphone for professional vocal applications
• High speech intelligibility from a sub-miniature condenser element
• Capable of handling loud sound sources without distortion – all the way up to 150dB SPL
• Excellent off-axis rejection from a cardioid polar pattern
• Small, lightweight, and comfortable to wear
• Eliminates noise, interference, and static busts with digital UHF reception
• Allows up to 90 channels with a bandwidth of 56MHz
• Clean, easy channel search with the Auto Scan function
• Smooth, precise tuning with 25 kHz (100kHz for 1.8GHz sets) step size
• Eliminates intermodulation issues with Equidistant Spacing
• Reliable wireless performance in crowded RF environments thanks to a simplified multi-channel setup
• Easy to connect with Bluetooth extended range sync
• Adjust all parameters directly from your receiver – including gain-staging, battery status, systems monitoring, and more
• Total control of your system via Smart Assist App control for Android and iOS
• Pristine connection from a 3.5mm locking connector
• Impressive eight-hour transmitter battery life from 2 x AA batteries
• Extended twelve-hour transmitter battery life with the optional rechargeable Li-Ion battery
• Silence guitars and microphones with the on-board mute switch
• Over 300ft range from 10 mW RF output power
• Lowest latency in its class (1.9mS)
• Robust, roadworthy design with durable, all-metal housing
• Ideal size for standard ½ 19” equipment racks
• Organise your wireless system components with optional colour-coding kits
• Compatible with a range of other Sennheiser lavalier and headset microphones

Specifications

System

• Audio link frequency ranges: S1-7 606.2 - 662 MHz
• Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Audio THD: (less than/equal to) -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity: 5 - 95 (non-condensing)

EW-D EM (Rack Receiver)

• Input voltage: 11 - 13 V (DC voltage)
• Input current: ≤ 300 mA
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: 18 dBu max.
• Dimensions: 212 x 44 x 189 mm
• Weight: approx. 1000 g (without antennas and power supply)

EW-D SK (Bodypack Transmitter)

• Input voltage: 2.0 - 4.35 V
• Input current: (below) 300 mA
• Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth: 200 kHz
• Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
• Dimensions: 63 x 80 x 20 mm (without antenna)
• Weight (without batteries): approx. 120 g

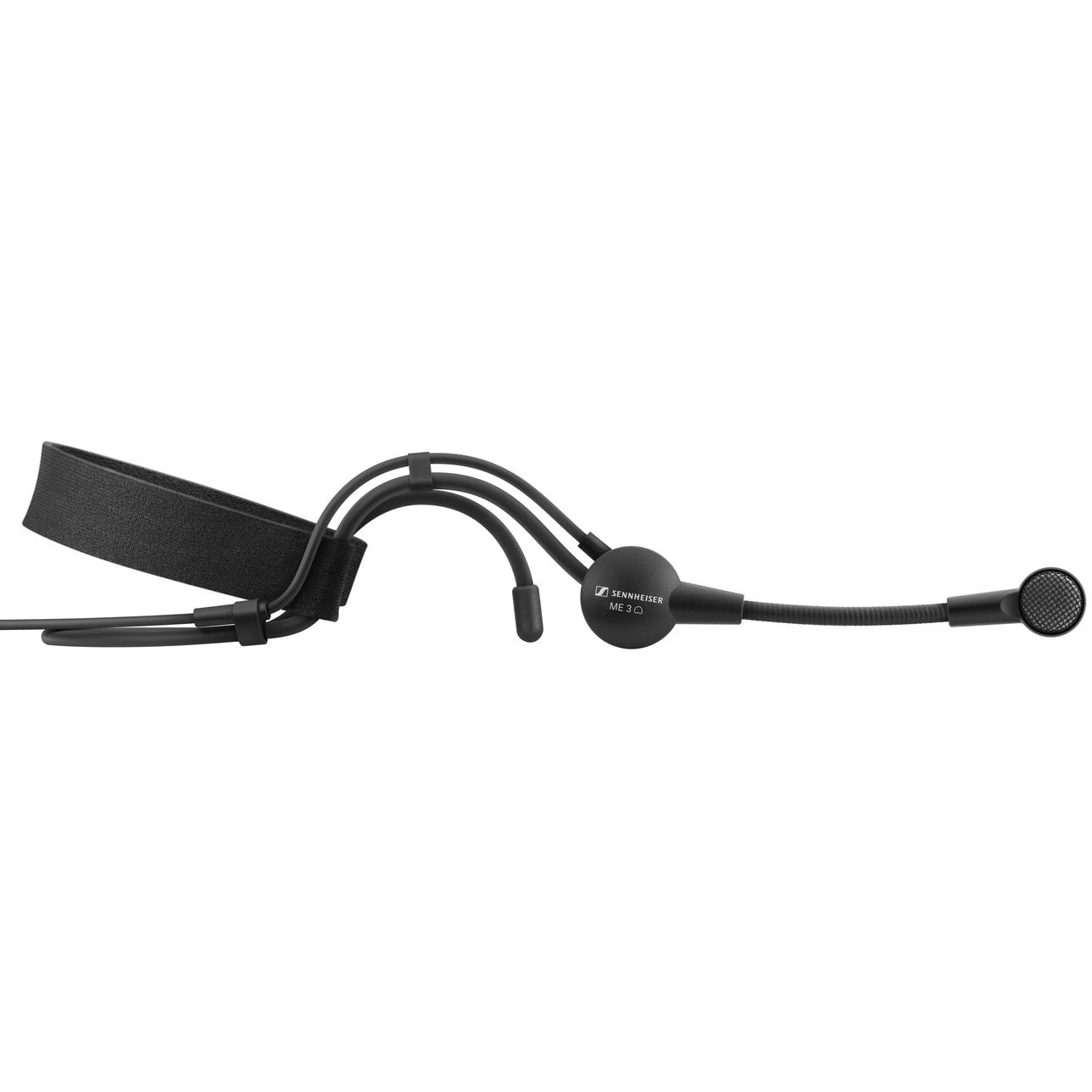

ME 3 (Headset Microphone)

• Transducer principle: pre-polarized condensor microphone
• Sensitivity: 1.6 mV/Pa
• Max. SPL: 150 dB
• Pick-up pattern: cardioid
• Connector: 3.5 mm jack
• Cable length: approx. 1.60 m
• Temperature range: -10 °C to +55 °C

Other

• Packaging dimensions: 405 x 350 x 73mm
• Weight (full set): 2.8kg
