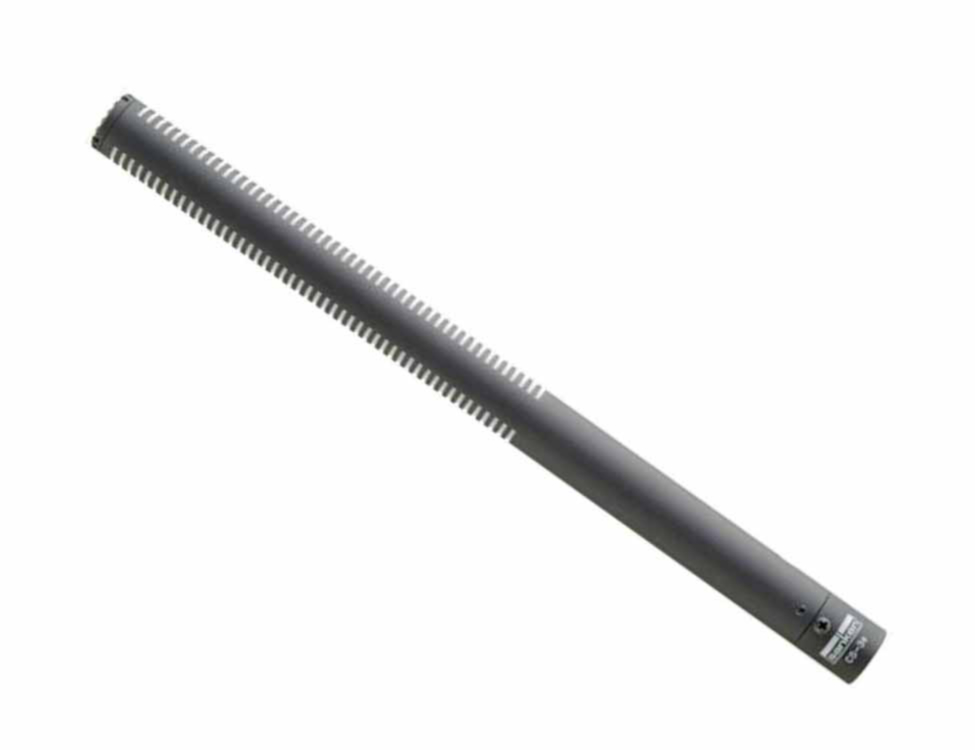

Sanken CS-3e
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Conventional shotgun microphones use a line capsule array and a pipe with slits in front of the capsule to create high directivity by utilizing phase interference inside the casing. With this conventional design, high-directivity in the middle-low fre-quency range is not achieved, although high-directivity in the high frequency range is maintained. Conventional shotgun microphones are at a disadvantage because they invariably pick up unwanted sounds coming from the back and sides.
In order to solve this problem, conventional shotgun micro-phones designed for high directivity in the middle-low frequencies require a length of more than one meter in length. However, long shotgun microphones seriously affect mobility and are not ideal for field recording.
The remarkable performance of the CS-3e is based on the combination of a second-gradient and line microphone with three directional condenser elements, using new PPS (Poly-Gold-Phenylene-Sulfide) diaphragms to provide optimum humidity/temperature stability. The CS-3e is small and lightweight with a low-cut switch to satisfy the various needs of location and studio recording. The standard 19mm diameter permits use of a wide range of accessories developed for enhanced performance and field mobility.
The CS-3e virtually eliminates the proximity effect and maintains sharp directivity, while the sonic characteristics do not change with varied distances between sources and microphone. This is a significant advantage over all other directional microphones.
FEATURES:
- unique three-capsule design
- super sharp directivity
- extremely low proximity effect
- long reach
- only 270 mm in length
- low-cut switch (-3dB @ 100Hz)
- clear and natural sound
- standard XLR3 connector
Conventional shotgun microphones use a line capsule array and a pipe with slits in front of the capsule to create high directivity by utilizing phase interference inside the casing. With this conventional design, high-directivity in the middle-low fre-quency range is not achieved, although high-directivity in the high frequency range is maintained. Conventional shotgun microphones are at a disadvantage because they invariably pick up unwanted sounds coming from the back and sides.
In order to solve this problem, conventional shotgun micro-phones designed for high directivity in the middle-low frequencies require a length of more than one meter in length. However, long shotgun microphones seriously affect mobility and are not ideal for field recording.
The remarkable performance of the CS-3e is based on the combination of a second-gradient and line microphone with three directional condenser elements, using new PPS (Poly-Gold-Phenylene-Sulfide) diaphragms to provide optimum humidity/temperature stability. The CS-3e is small and lightweight with a low-cut switch to satisfy the various needs of location and studio recording. The standard 19mm diameter permits use of a wide range of accessories developed for enhanced performance and field mobility.
The CS-3e virtually eliminates the proximity effect and maintains sharp directivity, while the sonic characteristics do not change with varied distances between sources and microphone. This is a significant advantage over all other directional microphones.
FEATURES:
- unique three-capsule design
- super sharp directivity
- extremely low proximity effect
- long reach
- only 270 mm in length
- low-cut switch (-3dB @ 100Hz)
- clear and natural sound
- standard XLR3 connector
