Rycote Nano Shield Kit NS1-BA
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

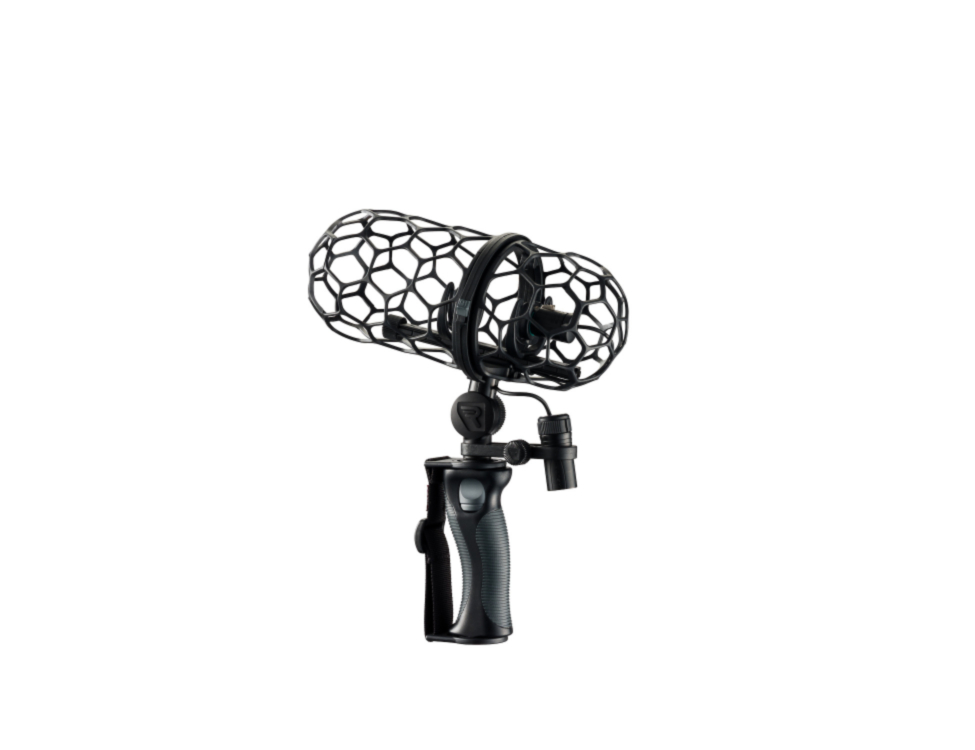

The Nano Shield offers an enhanced level of wind protection paired with improved acoustic transparency. The kits are smaller and on average weigh 30% lighter than Modular Windshield kits. The advanced Lyre mounts are also more compliant and offer better handling noise reduction. Overall the Nano Shield kits raise the bar for performance and versatility.
The Nano Shield kits use a unique magnetic locking basket design which can be configured to fit various microphone sizes by simply swapping out basket halves. Each size of basket half can interlock with any other size. They also have two manual locking sliders to hold everything secure and noise free. Quickly and easily access mics by simply pulling the halves apart.
The Nano Shield kits are on average 30% lighter than standard kits and have a smaller footprint when used with the same microphones. The basket shell is made from semi-rigid material that combines strength with flexibility. Layers of extra wind shielding can easily be added as you move from indoors to outdoors.
Rycote has advanced our patented Lyre mount and redesigned them specifically for the Nano Shield kits. While the basic shape might look similar, the material, thickness, center of gravity and mechanical properties have been engineered to provide a more compliant handling response in the direction the microphone is pointing whilst giving more stability in other directions to prevent mics from 'bottoming-out' or moving side-to-side.
The Lyre mounts and mounting bar on the Nano Shield can be adjusted, repositioned or swapped out by loosening / tightening the thumbwheel attached to the bar. Likewise, the swivel arm can be repositioned by loosening the friction braking wheel with interchangeable adaptors for an integrated PCS tip or 3/8" thread.
Kits come supplied with low-profile XLR cables that have both an active in-line RF filter and switchable 80Hz low cut (requires phantom power).
FEATURES:
- mix-n-match basked design
- lighter, smaller and more flexible
- advanced Lyre mounts
- no tools required
- RF filter & low cut XLR
*see Specifications tab for list of compatible microphones.

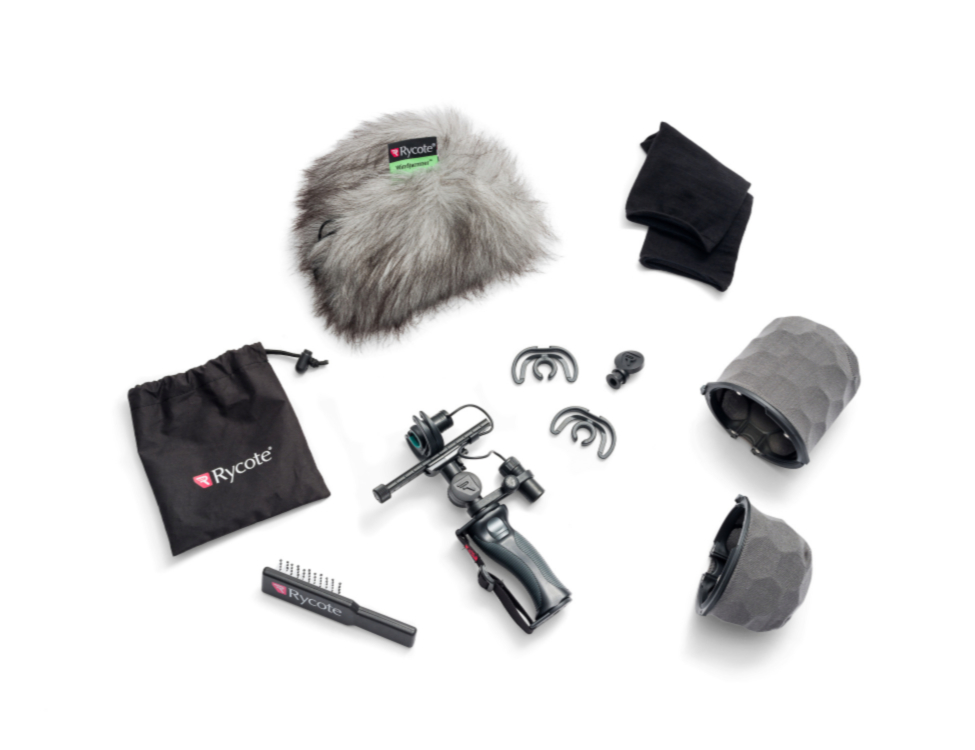

IN THE BOX:
- 2x magnetic locking windshield basket halves
- windjammer
- 'no tools needed' mic mounting bar with cable clips
- multiple pairs of advanced Lyre mounts
- friction brake swivel arm with integrated PCS Tip
- interchangeable 3/8" thread mount for swivel arm (direct to boom/stand)
- PCS ergonomic handle
- low-profile XLR cable with active in-line RF filter & switchable 80Hz low cut
- 360° adjustable & reversible XLR holder
- 2x pairs of wind socks (grey & black)
- protective case (not shown)
MIC COMPATIBILITY (max mic length = 59 mm):
- DPA 4018C
- DPA 4018 MMP-ER
- SCHOEPS CCM
- SCHOEPS CMC-1L MK41
- SCHOEPS CMC-1U
- SENNHEISER MKH 8040/ MZL
