Audio Wireless DADM226-DT-MK2
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Digitally Tuned Diversity Antenna Distribution Module DADM226-DT-MK2
designed to offer the solution specifically in crowded RF Spectrum to the
antenna distribution requirements.
Digitally Tuned Diversity Antenna Distribution Module DADM226-DT-MK2 is a custom design, which offers the solution specifically in crowded RF spectrum to antenna distribution requirements for portable sound bag applications. Designed for where the weight and size matters without sacrificing on performance.
The Diversity Antenna Distribution Module DADM226-DT-MK2 covers frequency range 470-702MHz offering user selectable narrow RF-Bandwidth with high selectivity RF filters, to suit individual applications and frequency allocations.
The Digitally tuned filters individually tuned in the frequency range 470-702MHz, user selectable in 8MHz step, 24MHz bandwidth with adjustable gain between +10dB to -10dB, user adjustable in 1dB steps.
The DADM226-DT-MK2 offers custom tuned “Narrow-Band” RF Filtering for crowded spectrum and provides utmost protection against interfering signals maintaining robust RF integrity.
The DADM226-DT-MK2 is an active antenna distribution system with user-selectable narrow-bandwidth band-pass filtering; eliminates multiple receiver antennas and provides a tidy solution for sound bags, carts, and trolleys with improved RF performance.

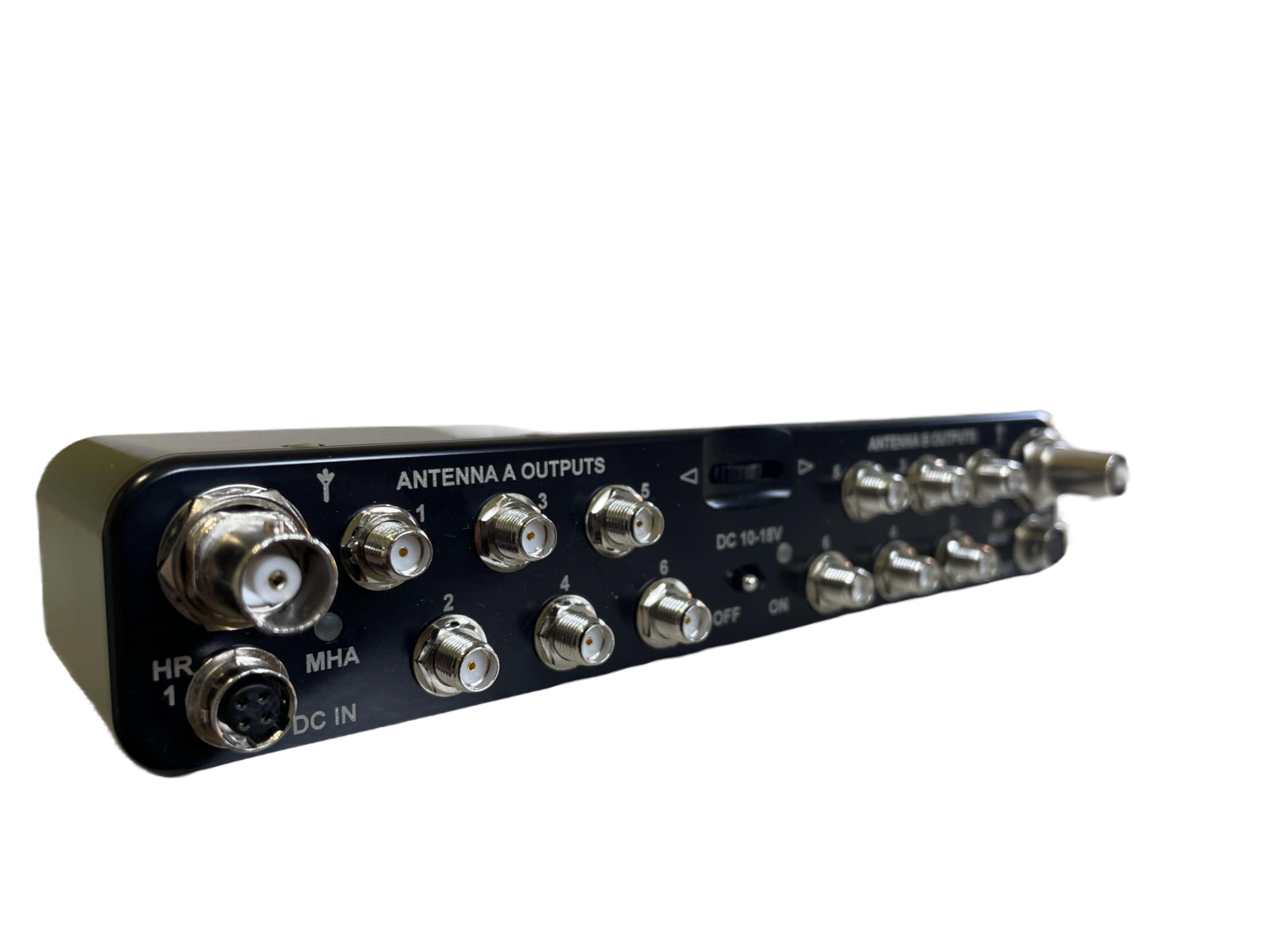

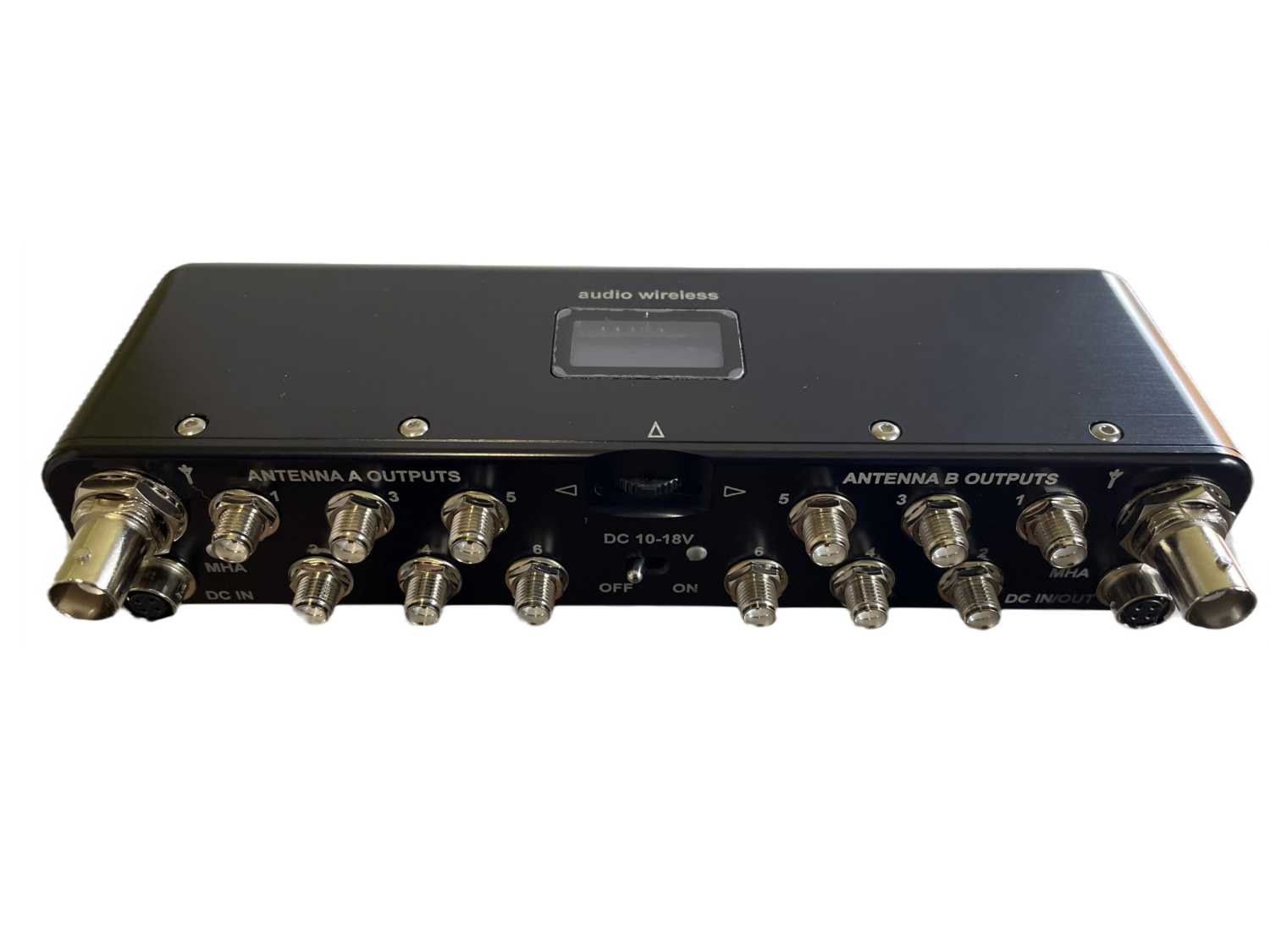

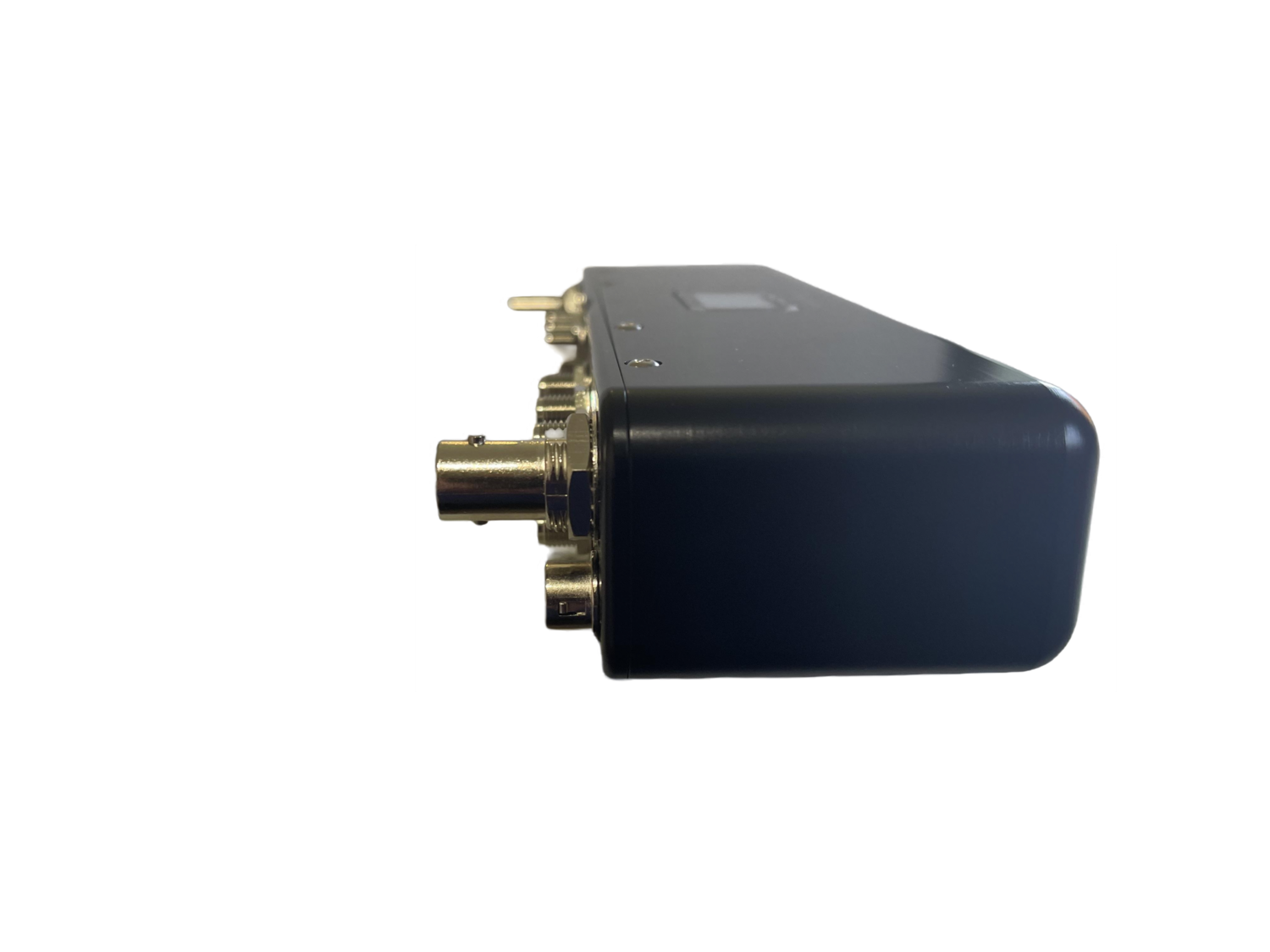

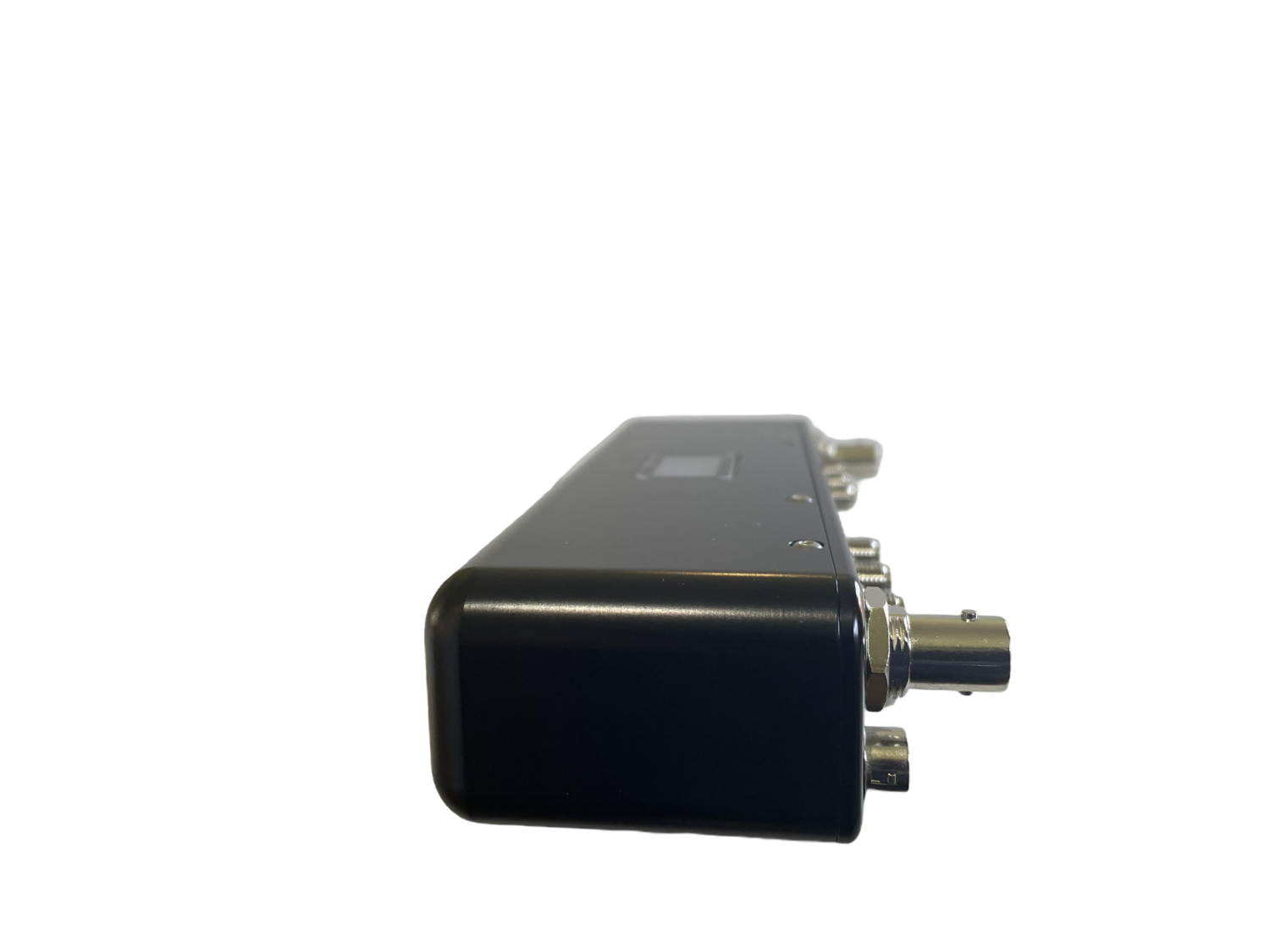

There are two industry standard BNC input connectors for antenna inputs, enable use of standard low loss RF extension cables and 2 x 6 mini-RF SMA connectors feeding the diversity receivers.
In applications requiring remote antenna powering, the DADM offers switchable active antenna powering, settings trough the OLED display menu, the RED LEDs indicating power ON/OFF status.
The DADM226-DT-MK2 has an extremely high input signal handling capacity with extremely low noise figure and offers an outstanding inter-modulation performance when compared to other low power devices available.
DC powering is through standard 4-pin Hirose type connector between voltages 10-18Vdc, an additional Hirose dc connector (HR2) can be user configurable as DC IN or DC OUT through the OLED menu. A green LED indicates power-on status of the system box, the OLED continuously displays dc input voltage.
Audio Wireless Diversity Combiner/Distribution systems are now the first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless microphone applications.
| RF Distribution Section | |
| Frequency Range | 470 to 702MHz |
| Input Impedance | 50 Ω |
| Output Impedance | 50 Ω |
| Current Consumption |
210mA +/-10mA
|
| Digitally Tuned Filter Range | 470-702MHz |
| Bandwidth | 24MHz, user tunable in 8MHz steps |
| Adjustable Gain Range | +10dB to -10dB, adjustable in 1dB steps |
| OPI3 | > +41dBm |
| Port-port isolation | > 20dB (min) |
| Noise Figure | < 3 dB |
| Connections | |
| RF Inputs | 2 x 50 Ω Standard BNC Sockets |
| RF outputs to receivers | 2 x 6 x 50 Ω mini UHF SMA sockets |
| Master ON/OFF Switch | Master switch with green led -ON- indicator |
| Navigation Dial Switch | 3-way Dial Switch, Middle press(SET), left and right dial as UP/DOWN the Menu |
| DC Power IN(HR1) | 4-Pin Hirose, Pins1+2(-ve), Pins3+4(+ve) |
| DC Power IN/OUT(HR2) | 4-Pin Hirose, Pins1+2(-ve), Pins3+4(+ve) user configurable as DC-IN or DC-OUT |
| Powering | |
| Operating voltage range | 10-18V, input reverse power, and short circuit protected |
| Active Antenna Powering | Active Antenna Powering, 12V regulated@ 500mA(max.) user selectable |
| Hirose dc output(HR2) |
HR2 can be configured as DC Output or DC input port, DC out is unregulated incoming volts, fused, and protected against reverse polarity |
| Outer Case | |
| Dimensions | 178x35x56mm (W x H x D) |
| Weight | 370g |
| RF Link Cables Supplied |
12xSMA-RA to SMA-RA, 40cm 2xBNC-RA to BNC-S Antenna extension cables, 50cm |
Digitally Tuned Filter Bands:
|
BAND No: |
FREQUENCY RANGE: |
BAND No: |
FREQUENCY RANGE: |
BAND No: |
FREQUENCY RANGE: |
|
1 |
470-494 MHz |
11 |
550-574 MHz |
21 |
630-654 MHz |
|
2 |
478-502 MHz |
12 |
558-582 MHz |
22 |
638-662 MHz |
|
3 |
486-510 MHz |
13 |
566-590 MHz |
23 |
646-670 MHz |
|
4 |
494-518 MHz |
14 |
574-598 MHz |
24 |
654-678 MHz |
|
5 |
502-526 MHz |
15 |
582-606 MHz |
25 |
662-686 MHz |
|
6 |
510-534 MHz |
16 |
590-614 MHz |
26 |
670-694 MHz |
|
7 |
518-542MHz |
17 |
598-622 MHz |
27 |
678-702 MHz |
|
8 |
526-550 MHz |
18 |
606-630 MHz |
|
|
|
9 |
534-558 MHz |
19 |
614-638 MHz |
|
|
|
10 |
542-566 MHz |
20 |
622-646 MHz |
|
