Audio Wireless AWPB-1W TX power booster
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

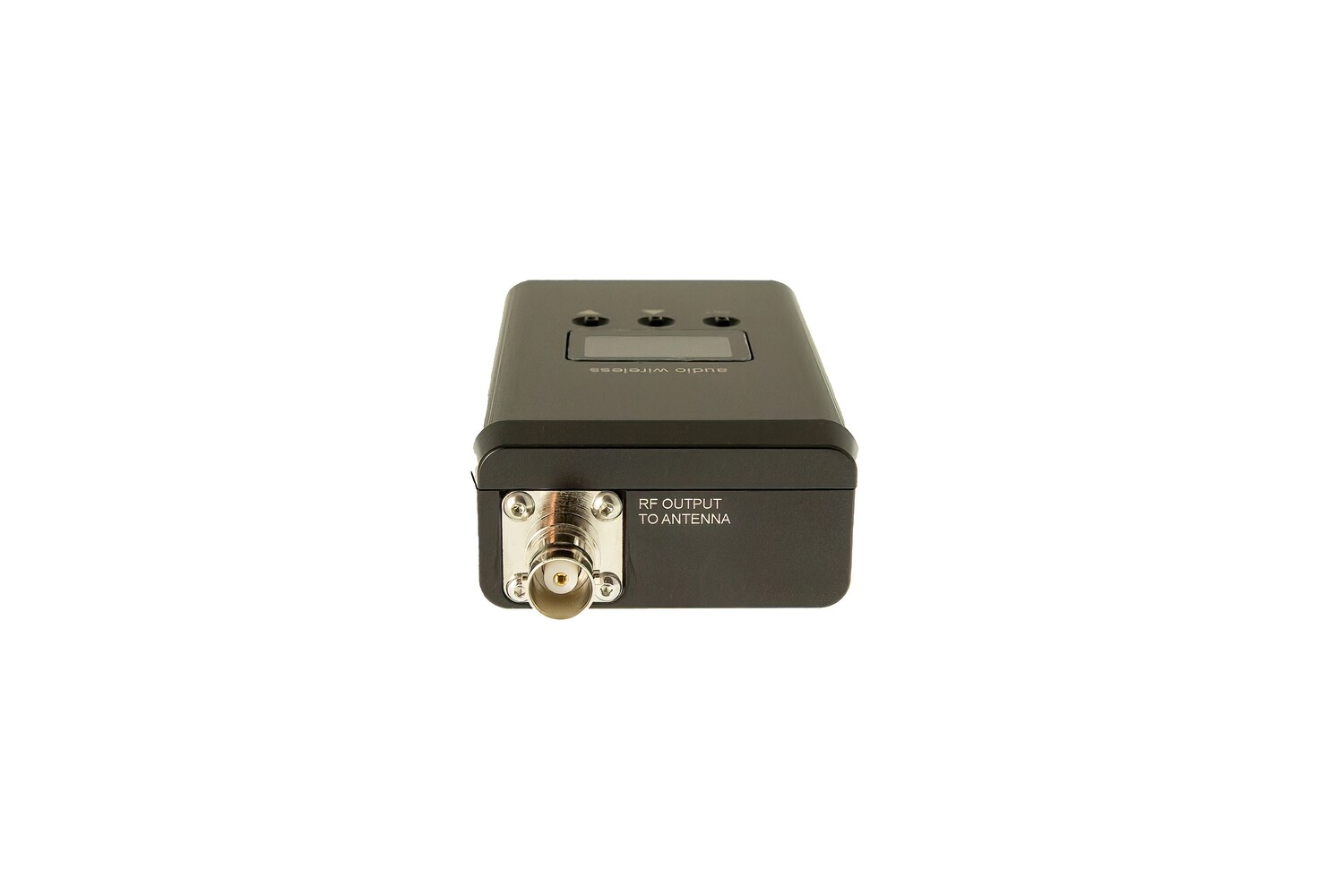

The AWPB-1W amplifier offers up to 1W of output power and a 12 dB small signal gain, with excellent gain flatness along with outstanding dynamic range and Noise Figure.
Designed to boost low-power Radio Microphone transmitter outputs up to 1Watt. Applications such as Audio Links in sports events, during filming for car-to-car recordings, boosting IEM transmitters to cover larger areas and more.
The booster power amplifier output stage employs a very selective
custom-tuned band-pass filter which determines the operating frequency range
and suppresses the 2nd and 3rd harmonics of the transmitter.
The frequency band: 470 - 700MHz
The booster gain is user adjustable in 0.5dB steps to suit different
applications, through the intuitive OLED display, a real-time dc voltmeter
continuously monitors input dc volts. The Lock Menu enables Lock the user
adjustable setting against accidental change in action.
Compatible with any UHF wireless Transmitters operating in the same tuning
range, Hybrid FM, and Analogue FM, a very wide dynamic input range accepts
transmitter power levels from 0dBm(1mW) to +25dBm(316mW).
The AWPB-1W enclosure is a custom design for compactness as well as an
integral heat sink minimizing the unit’s heat dissipation, using advanced
PCB designs technique the heat dissipation is minimized. Overall, the box
design is to withstand the heavy-duty use of the harsh environment,
providing long life and consistent performance under difficult operating
conditions. The booster box is a custom design CNC machined aluminum, black
anodized finish with laser marking. a custom design CNC machined aluminum,
black anodized finish with laser marking.
| Technical Specification: | |
| Maximum RF Output Power | 1Watt (+30dBm) |
| Gain | 12+/-0.5dB user adjustable in 0.5dB steps |
|
Nominal RF output power
|
0.8Watt (800mW) with TX output at 50mW
|
| Gain range | +12dB to 0dB, adjustable in 0.5dB steps |
|
OIP3
|
> +48dBm
|
| Gain | 12dB+/-0.5dB (user adjustable) |
|
Noise Figure
|
< 3 dB
|
| Maximum input power | +25dBm (316mW) at Gain setting 12dB |
| Frequency Bands available | 470-700MHz, 470-608MHz, 500-865MHz, 500-960MHz, 960-1164MHz |
| Harmonic rejection | >30dB(min) |
| Connections: | |
| RF Input | Standard BNC-F Socket, 50 Ω |
| RF output |
Standard BNC-F Socket, 50 Ω
|
| Hirose DC input | 4-pin Hirose (pins1+2: 0V, pins3+4: +ve) |
| Powering: | |
| Operating voltage range | 10-18V, input reverse power, and short circuit protected |
| Current Consumption | 280mA +/-10mA, 4W (max) |
|
Main ON/OFF Switch
|
2-way Toggle switch with Red LED - ON - indicator |
| Outer Case: | |
| Dimensions | 137x58x28mm (W x H x D) (inc. BNC connectors) |
| Weight | 295g |
The AWPB-1W amplifier offers up to 1W of output power and a 12 dB small signal gain, with excellent gain flatness along with outstanding dynamic range and Noise Figure.
Designed to boost low-power Radio Microphone transmitter outputs up to 1Watt. Applications such as Audio Links in sports events, during filming for car-to-car recordings, boosting IEM transmitters to cover larger areas and more.
The booster power amplifier output stage employs a very selective
custom-tuned band-pass filter which determines the operating frequency range
and suppresses the 2nd and 3rd harmonics of the transmitter.
The frequency band: 470 - 700MHz
The booster gain is user adjustable in 0.5dB steps to suit different
applications, through the intuitive OLED display, a real-time dc voltmeter
continuously monitors input dc volts. The Lock Menu enables Lock the user
adjustable setting against accidental change in action.
Compatible with any UHF wireless Transmitters operating in the same tuning
range, Hybrid FM, and Analogue FM, a very wide dynamic input range accepts
transmitter power levels from 0dBm(1mW) to +25dBm(316mW).
The AWPB-1W enclosure is a custom design for compactness as well as an
integral heat sink minimizing the unit’s heat dissipation, using advanced
PCB designs technique the heat dissipation is minimized. Overall, the box
design is to withstand the heavy-duty use of the harsh environment,
providing long life and consistent performance under difficult operating
conditions. The booster box is a custom design CNC machined aluminum, black
anodized finish with laser marking. a custom design CNC machined aluminum,
black anodized finish with laser marking.
| Technical Specification: | |
| Maximum RF Output Power | 1Watt (+30dBm) |
| Gain | 12+/-0.5dB user adjustable in 0.5dB steps |
|
Nominal RF output power
|
0.8Watt (800mW) with TX output at 50mW
|
| Gain range | +12dB to 0dB, adjustable in 0.5dB steps |
|
OIP3
|
> +48dBm
|
| Gain | 12dB+/-0.5dB (user adjustable) |
|
Noise Figure
|
< 3 dB
|
| Maximum input power | +25dBm (316mW) at Gain setting 12dB |
| Frequency Bands available | 470-700MHz, 470-608MHz, 500-865MHz, 500-960MHz, 960-1164MHz |
| Harmonic rejection | >30dB(min) |
| Connections: | |
| RF Input | Standard BNC-F Socket, 50 Ω |
| RF output |
Standard BNC-F Socket, 50 Ω
|
| Hirose DC input | 4-pin Hirose (pins1+2: 0V, pins3+4: +ve) |
| Powering: | |
| Operating voltage range | 10-18V, input reverse power, and short circuit protected |
| Current Consumption | 280mA +/-10mA, 4W (max) |
|
Main ON/OFF Switch
|
2-way Toggle switch with Red LED - ON - indicator |
| Outer Case: | |
| Dimensions | 137x58x28mm (W x H x D) (inc. BNC connectors) |
| Weight | 295g |
